Description
Ceratizit Article Number: 70800986
Ceratizit Material Number: 11160654
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

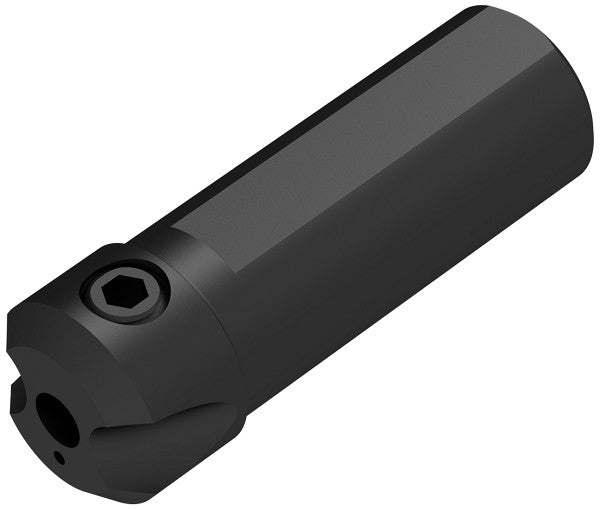

| Name | Ceratizit EC-ADX12-06-E EcoCut Adapter Mini 70800986 | |
| EDP # | 0712327 | |
| Weight (1 pc.) | 5.0 oz | 139 g |

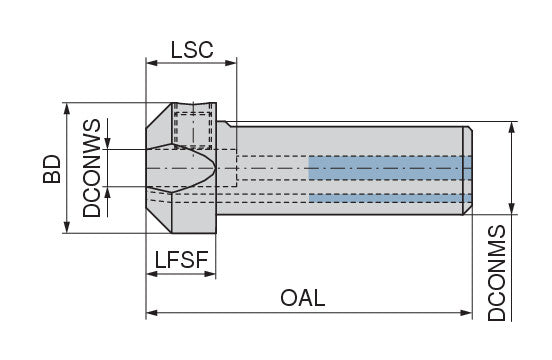

| Clamping diameter (DCONWS) / DCONWS | 0.2362" | 6.000 mm |
| Mounting spigot diameter / DCONMS | 0.7500" | 19.050 mm |
| Neck diameter (BD) / BD | 0.9843" | 25.000 mm |
| Overall length / OAL | 2.5000" | 63.500 mm |
| Distance to face / LFSF | 0.5512" | 14.000 mm |
| Clamping length machine side / LSC | 0.7087" | 18.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
