Description
Ceratizit Article Number: 70286110
Ceratizit Material Number: 11161904
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

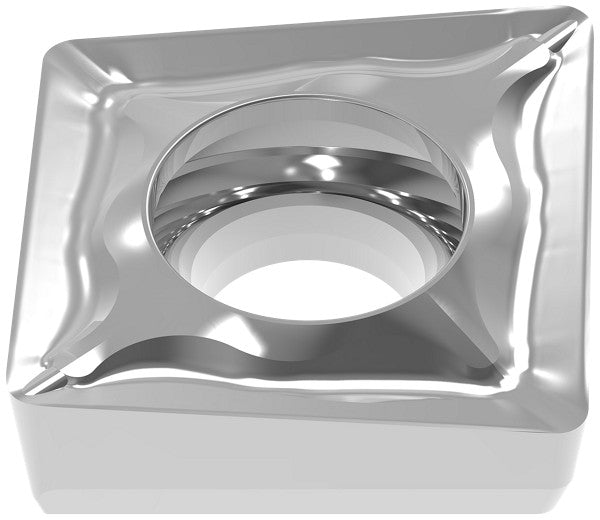

| Name | Ceratizit XCET 130404FN-27Q H210T EcoCut HM indexable Insert 70286110 | |
| EDP # | 0712330 | |
| Weight (1 pc.) | 0.3 oz | 8.9 g |

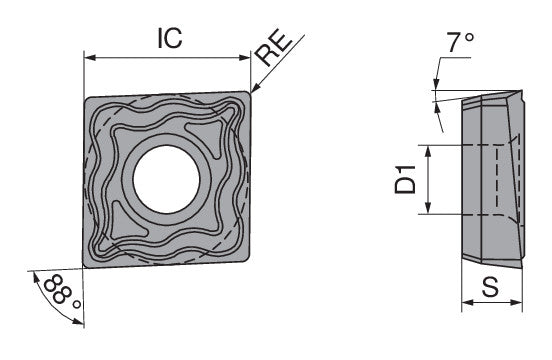

| Corner radius / RE | 0.0157" | 0.400 mm |
| Insert thickness / S | 0.1874" | 4.760 mm |
| Fixing hole diameter / D1 | 0.2087" | 5.300 mm |
| designation | 130404FN | |
| Inscribed circle diameter / IC | 0.5315" | 13.500 mm |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
| Product-Carbon-Footprint | C | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
