Description
Ceratizit Article Number: 70193600
Ceratizit Material Number: 11167056
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

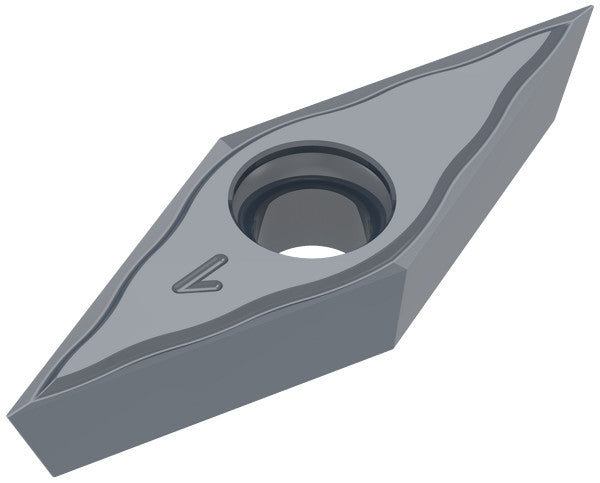

| Name | Ceratizit VCGT 110300FN-F23 CTP2120 CoreLine Carbide Turning indexable Insert 70193600 | |
| EDP # | 0712338 | |
| Weight (1 pc.) | 0.1 oz | 3.8 g |
| Product-Carbon-Footprint | E | |
| designation | 110300FN | |
| Corner radius / RE | 0.0000" | 0.000 mm |
| Cutting edge length / L | 0.4370" | 11.100 mm |
| Insert thickness / S | 0.1252" | 3.180 mm |
| Fixing hole diameter / D1 | 0.1142" | 2.900 mm |
| Inscribed circle diameter / IC | 0.2500" | 6.350 mm |
| 22X0FN | ||
| Insert index count / NOI | 2.0000" | 50.800 mm |
| Chip breaker (Ceratizit) / CBMD | -F23 | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
