Description
Note that this item has been discontinued and will not be re-stocked.
Ceratizit Article Number: 70178400
Ceratizit Material Number: 11168418
Product discontinued! Unavailable if out of stock.
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

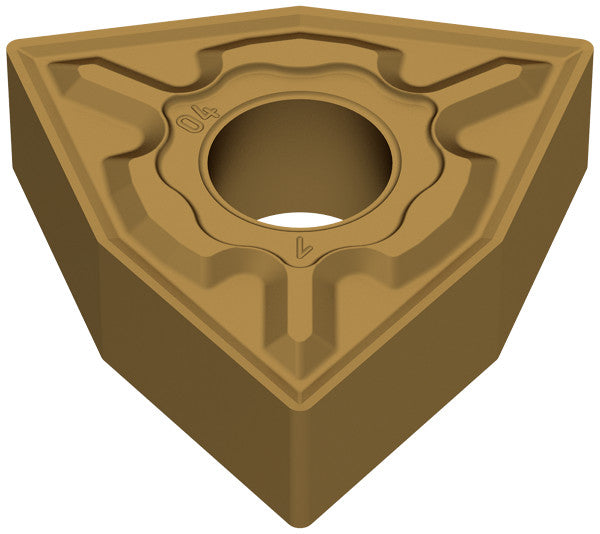

| Name | Ceratizit WNMG 060404EN-M42 CTC2135 70178400 | |
| EDP # | 0712381 | |
| Weight (1 pc.) | 0.2 oz | 6.3 g |
| designation | 060404EN | |
| Corner radius / RE | 0.0157' | 0.400 mm |
| Cutting edge length / L | 0.2559' | 6.500 mm |
| Insert thickness / S | 0.1874' | 4.760 mm |
| Fixing hole diameter / D1 | 0.1500' | 3.810 mm |
| Inscribed circle diameter / IC | 0.3748' | 9.520 mm |
| Chip breaker (Ceratizit) / CBMD | -M42 | |
| Coating name / Grade (Ceratizit) / COATN | CTC2135 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
