Description
Ceratizit Article Number: 50468910
Ceratizit Material Number: 11199736
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit ZNHW 120508ER-1503 CTD4205 CoreLine PDC Milling indexable Insert 50468910 | |
| EDP # | 0712446 | |
| Weight (1 pc.) | 0.4 oz | 11.8 g |
| Product-Carbon-Footprint | F | |
| designation | 120508ER-1503 | |

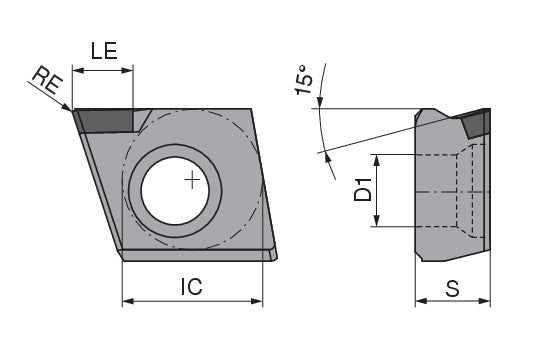

| Corner radius / RE | 0.0315" | 0.800 mm |
| Cutting edge effective length / LE | 0.1181" | 3.000 mm |
| Inscribed circle diameter / IC | 0.3937" | 10.000 mm |
| Fixing hole diameter / D1 | 0.1909" | 4.850 mm |
| Cutting edge length / L | 0.5000" | 12.700 mm |
| Insert thickness / S | 0.2126" | 5.400 mm |
| Clearance angle major / AN | 0 ° | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
