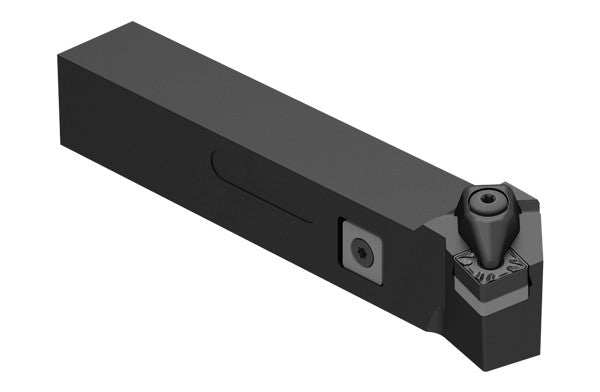

Ceratizit DSKNL 2525 M12 CoreLine - 75° - Toolholder With Top Clamping 70525625 (0712535)
Ceratizit DSKNL 2525 M12 CoreLine - 75° - Toolholder With Top Clamping 70525625 (0712535)
Couldn't load pickup availability
Ceratizit Article Number: 70525625
Ceratizit Material Number: 11224637
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit DSKNL 2525 M12 CoreLine - 75° - Toolholder With Top Clamping 70525625 | |
| EDP # | 0712535 | |
| Workpiece Material(s) | Cast Iron (Red) Steel (Blue) Stainless Steel (Yellow) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 27.0 oz | 755 g |

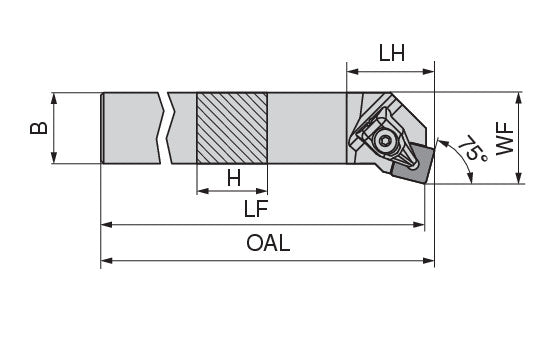

| Shank height / H | 0.9843" | 25.000 mm |
| Shank width / B | 0.9843" | 25.000 mm |
| Overall length / OAL | 6.0354" | 153.300 mm |
| Functional length / LF | 5.9055" | 150.000 mm |
| Head length / LH | 1.1024" | 28.000 mm |
| Functional width / WF | 1.2598" | 32.000 mm |
| Insert | SN.. 1204 | |
| Overall height / OAH | 1.1744" | 29.830 mm |
| torque moment | 4 Nm | |
| Version | Left | |
| Product-Carbon-Footprint | B | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
