Description
Ceratizit Article Number: 70569840
Ceratizit Material Number: 11224659
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

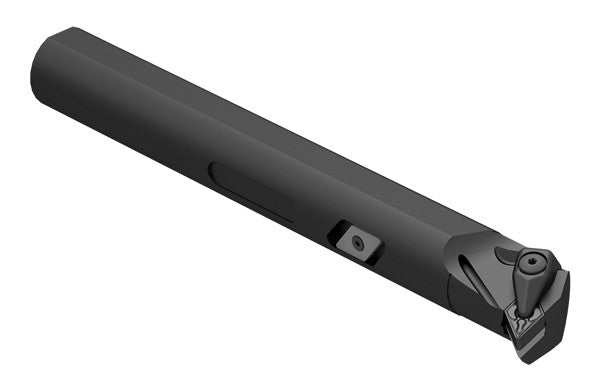

| Name | Ceratizit A40T DDUNL 15 MaxiLock-D - 93° - Boring Bar With Top Clamping 70569840 | |
| EDP # | 0712547 | |
| Workpiece Material(s) | Steel (Blue) Cast Iron (Red) Stainless Steel (Yellow) Steel (Blue) Cast Iron (Red) Hard/Tool Steel (Grey) HiTemp Alloy (Orange) Stainless Steel (Yellow) All Materials (White) | |
| Weight (1 pc.) | 100.0 oz | 2825 g |

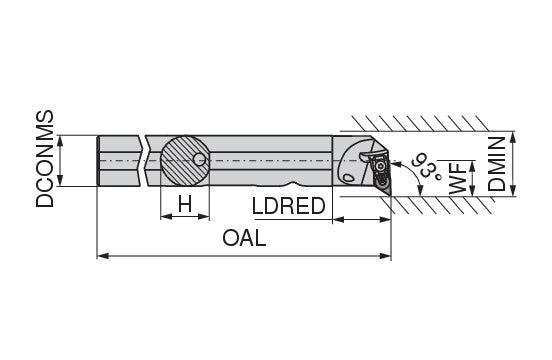

| Mounting spigot diameter / DCONMS | 1.5748" | 40.000 mm |
| Shank height / H | 1.5354" | 39.000 mm |
| Overall length / OAL | 11.8110" | 300.000 mm |
| Reduced body diameter length / LDRED | 1.7717" | 45.000 mm |
| Functional width / WF | 1.0630" | 27.000 mm |
| Minimum bore diameter / DMIN | 1.9685" | 50.000 mm |
| Insert | DN.. 1506 | |
| Body diameter, reduced / BDRED | 1.5551" | 39.500 mm |
| torque moment | 4 Nm | |
| Version | Left-hand | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
