Description
Ceratizit Article Number: 7459700000
Ceratizit Material Number: 11232155
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

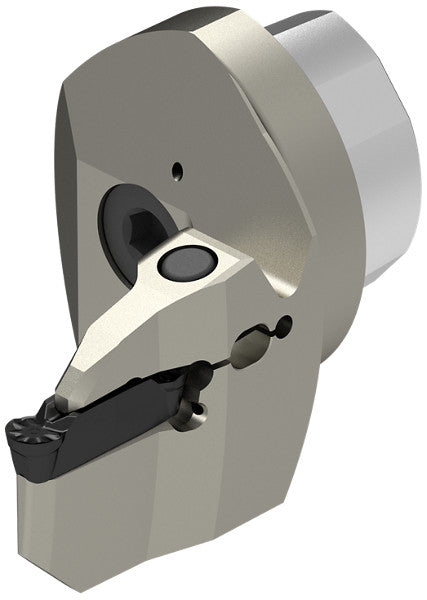

| Name | Ceratizit OC50-X32R00E OvalFlex 0° Tool Head For Axial Clamping 7459700000 | |
| EDP # | 0712618 | |
| Workpiece Material(s) | Aluminum (Green) Cast Iron (Red) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 25.0 oz | 701 g |

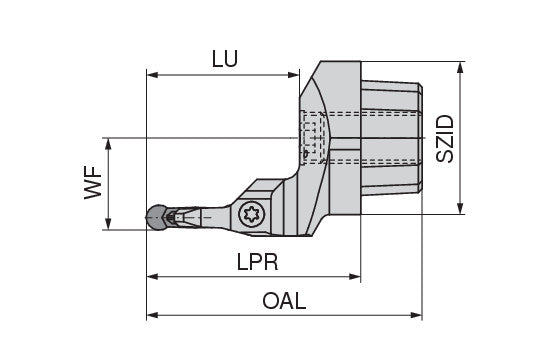

| Protruding length / LPR | 2.7559" | 70.000 mm |
| Functional width / WF | 1.1811" | 30.000 mm |
| Insert | X32.. | |
| Designation | OC50 X32 R 00E | |
| nominal size / SZID | 50 | |
| Usable length / LU | 1.9685" | 50.000 mm |
| Machine interface size | OC50 | |
| Version | Right-hand | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
