Description
Ceratizit Article Number: 7459702701
Ceratizit Material Number: 11244354
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

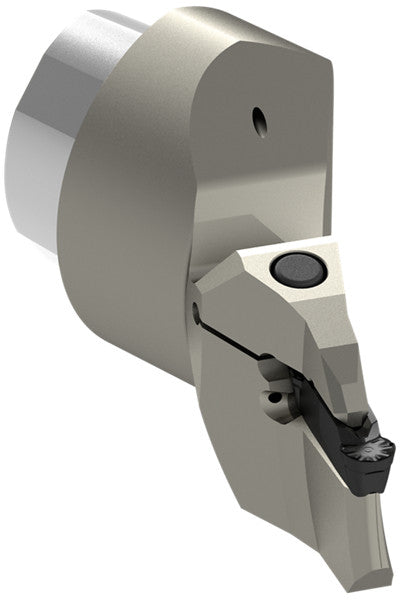

| Name | Ceratizit OC50-X32L27.5F OvalFlex 27.5° Tool Head For Axial Clamping 7459702701 | |
| EDP # | 0712642 | |
| Workpiece Material(s) | Aluminum (Green) Cast Iron (Red) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 29.0 oz | 828 g |

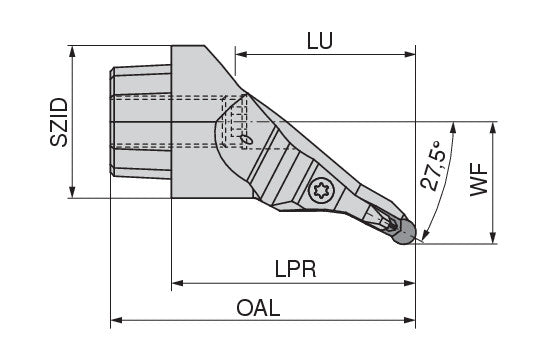

| Protruding length / LPR | 3.1496" | 80.000 mm |
| Functional width / WF | 1.5748" | 40.000 mm |
| Insert | X32.. | |
| Designation | OC50 X32 L 27.5F | |
| nominal size / SZID | 50 | |
| Usable length / LU | 2.3622" | 60.000 mm |
| Machine interface size | OC50 | |
| Version | Left-hand | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
