Description
Ceratizit Article Number: 7461100600
Ceratizit Material Number: 11262585
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

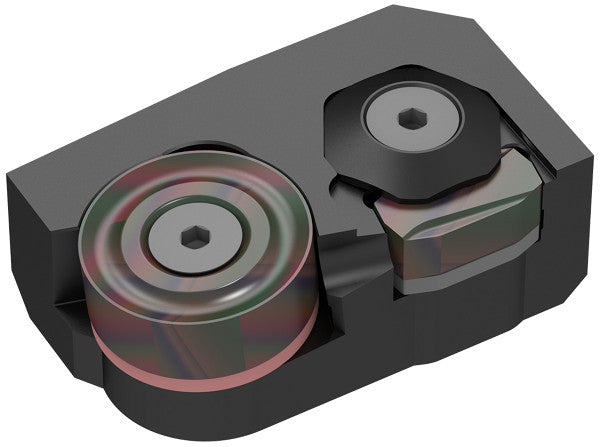

| Name | Ceratizit TCA12-RN50YN20 10005758 MaxiTurn Tandem Cartridge TCA..-RN../YN.. 7461100600 | |
| EDP # | 0712702 | |
| Workpiece Material(s) | Steel (Blue) Cast Iron (Red) Aluminum (Green) Stainless Steel (Yellow) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 64.0 oz | 1804 g |
| Product-Carbon-Footprint | A | |
| Designation | TCA12-RN50YN20 | |

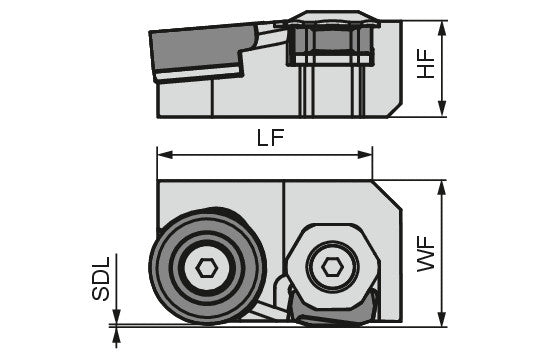

| Functional length / LF | 4.3307" | 110.000 mm |
| Functional height / HF | 1.5748" | 40.000 mm |
| Functional width / WF | 2.5591" | 65.000 mm |
| Step diameter length / SDL | 0.0472" | 1.200 mm |
| Insert | RNMH 5018.. / YNUF 201220 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
