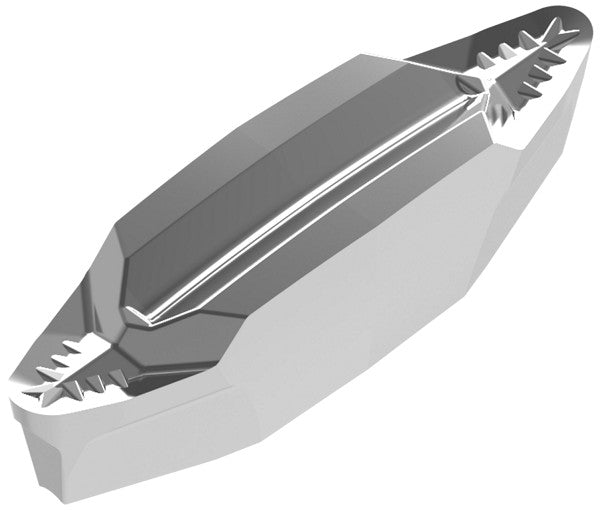

Ceratizit X32-R1.60VN-27P H216T MaxiGroove Carbide Grooving Insert 7022762200 (0712705)
Ceratizit X32-R1.60VN-27P H216T MaxiGroove Carbide Grooving Insert 7022762200 (0712705)
Couldn't load pickup availability
Ceratizit Article Number: 7022762200
Ceratizit Material Number: 11268012
Ceratizit Komet Number (Unpacked): 11268 012
Ceratizit Komet Number (Packed): 11268012
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit X32-R1.60VN-27P H216T MaxiGroove Carbide Grooving Insert 7022762200 | |
| EDP # | 0712705 | |
| Weight (1 pc.) | 1.0 oz | 22.2 g |
| Product-Carbon-Footprint | C | |

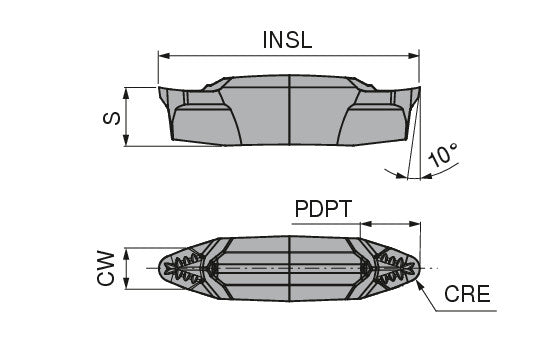

| Cutting width / CW | 0.1260" | 3.200 mm |
| Insert hand / IH | N | |
| Spot radius / CRE | 0.0630" | 1.600 mm |
| Chip breaker (Ceratizit) / CBMD | -27P | |
| Profile included angle / PNA | 35 ° | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
