Description
Ceratizit Article Number: 5872825007
Ceratizit Material Number: 11273047
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

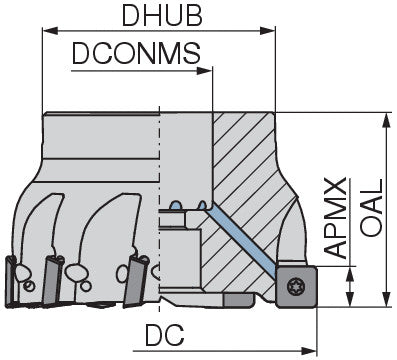

| Properties | ||
|---|---|---|

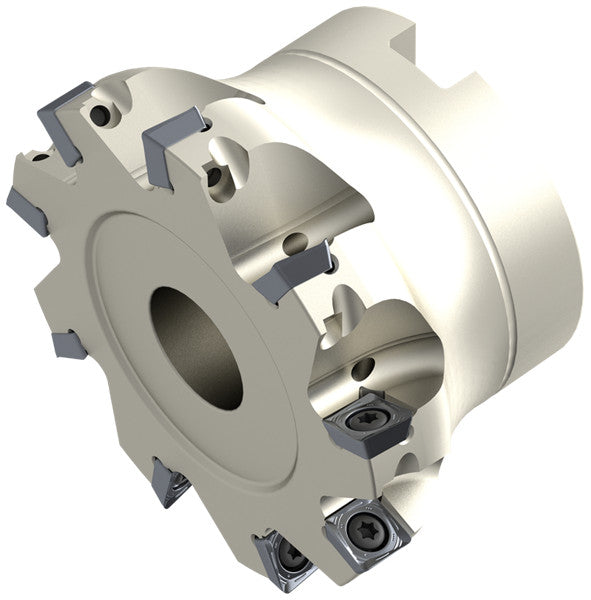

| Name | Ceratizit A490.250.R.07-09-A100-200-EF MaxiMill 490-09 Shell Mill 5872825007 | |
| EDP # | 0712711 | |
| Workpiece Material(s) | Cast Iron (Red) Aluminum (Green) Composites (Black) Stainless Steel (Yellow) Steel (Blue) HiTemp Alloy (Orange) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 23.0 oz | 656 g |
| Cutting diameter / DC | 2.5000" | 63.500 mm |
| Depth of cut maximum / APMX | 0.3150" | 8.001 mm |
| Face mounted insert count / ZNF | 7 | |
| Overall length / OAL | 1.9700" | 50.038 mm |
| Hub diameter / DHUB | 1.9700" | 50.038 mm |
| Mounting spigot diameter / DCONMS H6 | 1.0000" | 25.400 mm |
| Rotational speed maximum / RPMX | 12850 1/min. | |
| Insert | SD.. 09T3.. | |
| torque moment | 3.2 Nm | |
| Tool cutting edge angle / KAPR | 90 ° | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
