Description
Note that this item has been discontinued and will not be re-stocked.
Ceratizit Article Number: 70874310
Ceratizit Material Number: 11325557
Product discontinued! Unavailable if out of stock.
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

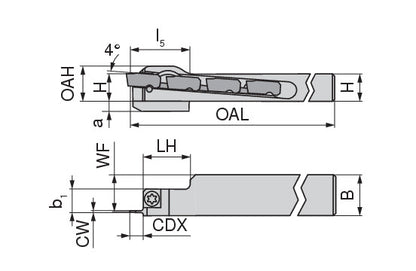

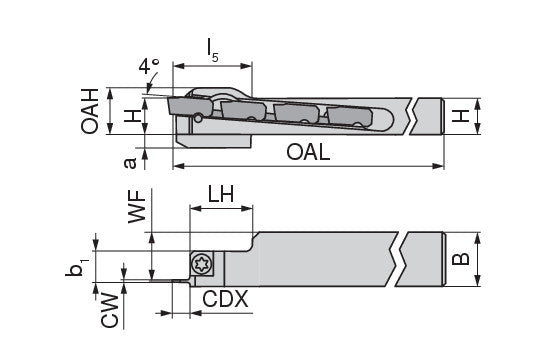

| Properties | ||
|---|---|---|
| Name | Ceratizit MC10R-1010K-S MaxiClick Toolholder Cutting Depth Mm 70874310 | |
| EDP # | 0712768 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 4.0 oz | 125 g |
| Shank height / H | 0.3937' | 10.000 mm |
| Shank width / B | 0.3937' | 10.000 mm |
| Functional width / WF | 0.3346' | 8.500 mm |
| Overall length / OAL | 4.9213' | 125.000 mm |
| Head length / LH | 1.1024' | 28.000 mm |
| L5 | 1.0630' | 27.000 mm |
| Overall height / OAH | 0.5118' | 13.000 mm |
| Cutting depth maximum / CDX | 0.3937' | 10.000 mm |
| A | 0.2362' | 6.000 mm |
| Cutting width range / CW | 0.0591' - 0.0984' | 1.500 - 2.500 mm |
| B1 | 0.3937' | 10.000 mm |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
