Description
Note that this item has been discontinued and will not be re-stocked.
Ceratizit Article Number: 70352672
Ceratizit Material Number: 11341167
Product discontinued! Unavailable if out of stock.
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

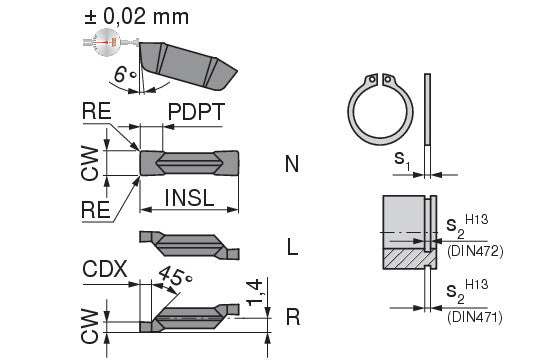

| Properties | ||
|---|---|---|
| Name | Ceratizit GX09-1S0.80R CTP1340 Circlip Groove Insert 09/16 Standard 70352672 | |
| EDP # | 0712806 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 0.1 oz | 1.6 g |
| Cutting width / CW +/-0,02 | 0.0315' | 0.800 mm |
| Insert hand / IH | R | |
| S1 - CIRCLIP | 0.0236' | 0.600 mm |
| S2 - CIRCLIP | 0.0276' | 0.700 mm |
| Cutting depth maximum / CDX | 0.0370' | 0.940 mm |
| Coating name / Grade (Ceratizit) / COATN | CTP1340 | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
