Description
Ceratizit Article Number: 7021862000
Ceratizit Material Number: 11343978
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

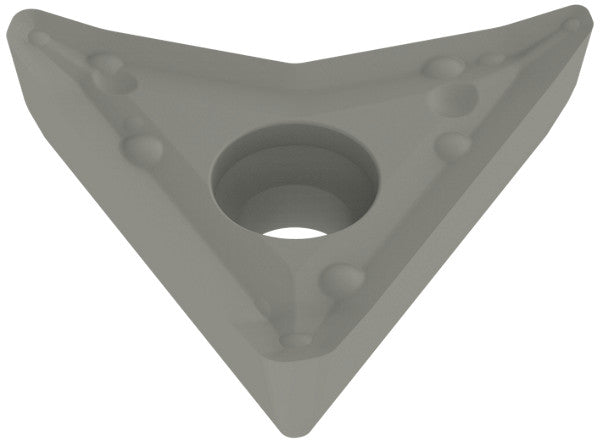

| Name | Ceratizit HUB 1507QR-27 H216T MaxiTurn Carbide Turning indexable Insert HubStar 7021862000 | |
| EDP # | 0712812 | |
| Weight (1 pc.) | 1.0 oz | 26.8 g |
| Product-Carbon-Footprint | C | |
| designation | HUB 1507QR | |

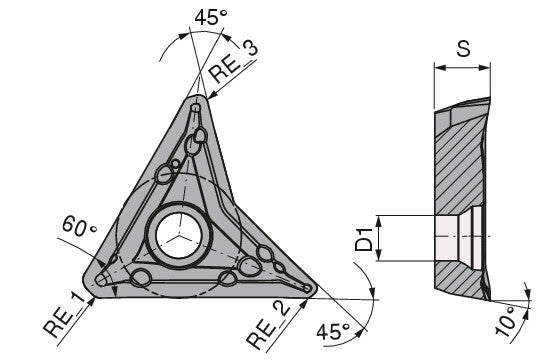

| Corner radius 1 / RE_1 | 0.0630" | 1.600 mm |
| Corner radius 2 / RE_2 | 0.0315" | 0.800 mm |
| Corner radius 3 / RE_3 | 0.0472" | 1.200 mm |
| Insert thickness / S | 0.2756" | 7.000 mm |
| Fixing hole diameter / D1 | 0.2283" | 5.800 mm |
| Inscribed circle diameter / IC | 0.6252" | 15.880 mm |
| Wiper edge length 3 / BS_3 | 0.0394" | 1.000 mm |
| Wiper edge length 2 / BS_2 | 0.0315" | 0.800 mm |
| Wiper edge length 1 / BS_1 | 0.0472" | 1.200 mm |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
