Description
Ceratizit Article Number: 50747132
Ceratizit Material Number: 11346393
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

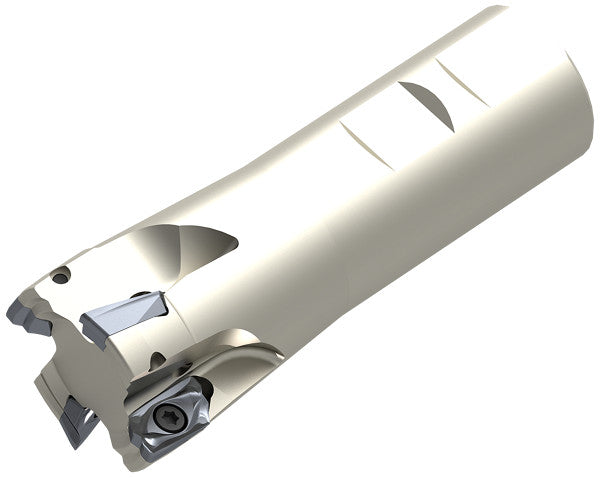

| Name | Ceratizit C211.32.R.03-15-B25-40 MaxiMill 211-15 End Milling Cutter 50747132 | |
| EDP # | 0712826 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Cast Iron (Red) Stainless Steel (Yellow) Steel (Blue) HiTemp Alloy (Orange) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 12.0 oz | 339 g |

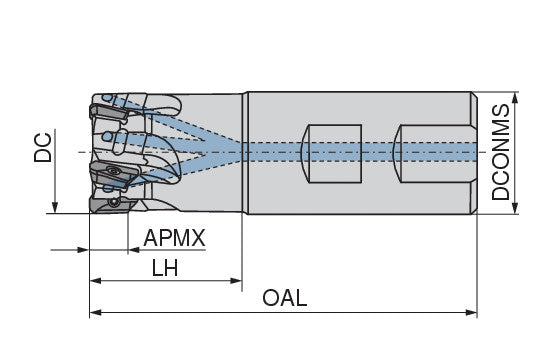

| Cutting diameter / DC | 1.2598" | 32.000 mm |
| Face mounted insert count / ZNF | 3 | |
| Depth of cut maximum / APMX | 0.5512" | 14.000 mm |
| Overall length / OAL | 3.7795" | 96.000 mm |
| Head length / LH | 1.5748" | 40.000 mm |
| Mounting spigot diameter / DCONMS | 0.9843" | 25.000 mm |
| Rotational speed maximum / RPMX | 22160 1/min. | |
| torque moment | 3.2 Nm | |
| Insert | XD.T 1505 | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
