Description
Ceratizit Article Number: 70352682
Ceratizit Material Number: 11346861
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

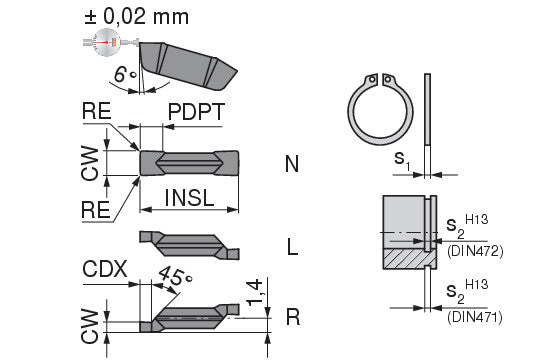

| Properties | ||
|---|---|---|

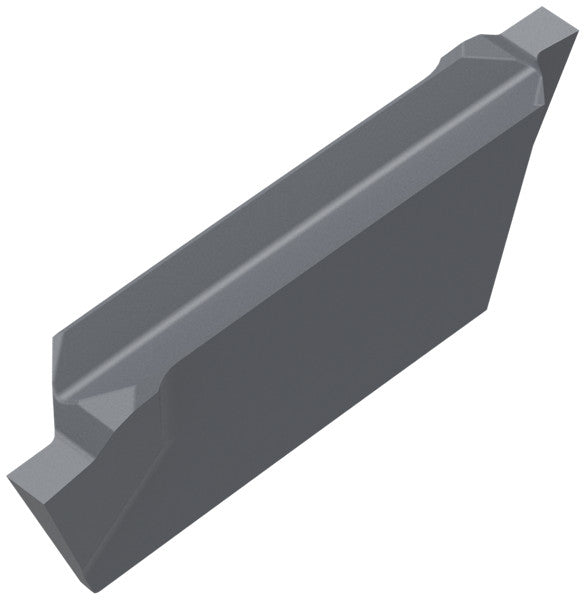

| Name | Ceratizit GX09-1S1.70R CTP1340 CoreLine Carbide Grooving Insert For circlip Grooves 70352682 | |
| EDP # | 0712848 | |
| Weight (1 pc.) | 0.02 oz | 0.4 g |
| Product-Carbon-Footprint | B | |
| Cutting width / CW +/-0,02 | 0.0669" | 1.700 mm |
| Insert hand / IH | R | |
| S1 - CIRCLIP | 0.0591" | 1.500 mm |
| S2 - CIRCLIP | 0.0630" | 1.600 mm |
| Cutting depth maximum / CDX | 0.0717" | 1.820 mm |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
