Description
Ceratizit Article Number: 70352694
Ceratizit Material Number: 11346865
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

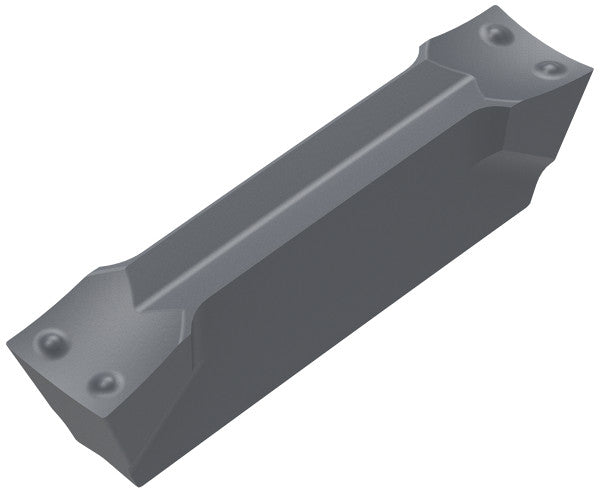

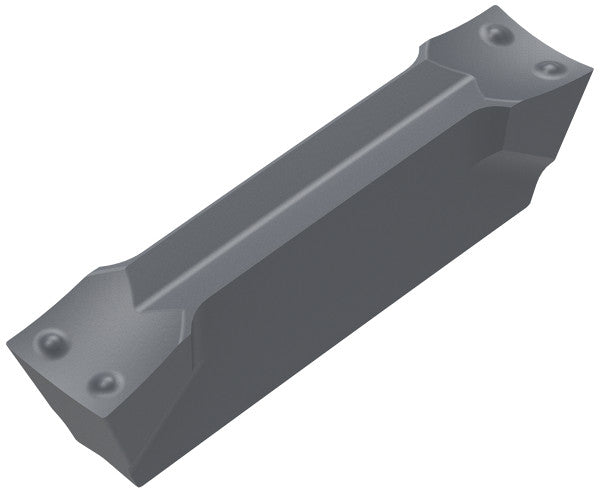

| Name | Ceratizit GX09-1S2.25N CTP1340 Circlip Groove Insert 09/16 Standard 70352694 | |
| EDP # | 0712850 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 0.1 oz | 2.0 g |

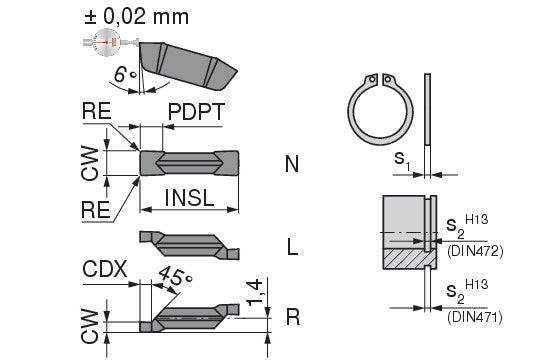

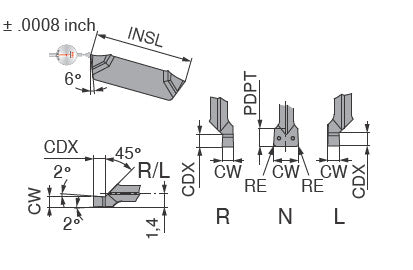

| Cutting width / CW +/-0,02 | 0.0886" | 2.250 mm |
| S1 - CIRCLIP | 0.0787" | 2.000 mm |
| S2 - CIRCLIP | 0.0846" | 2.150 mm |
| Corner radius / RE +/-0,05 | 0.0039" | 0.100 mm |
| Insert hand / IH | N | |
| Coating name / Grade (Ceratizit) / COATN | CTP1340 | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
