Description
Ceratizit Article Number: 70352699
Ceratizit Material Number: 11346934
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

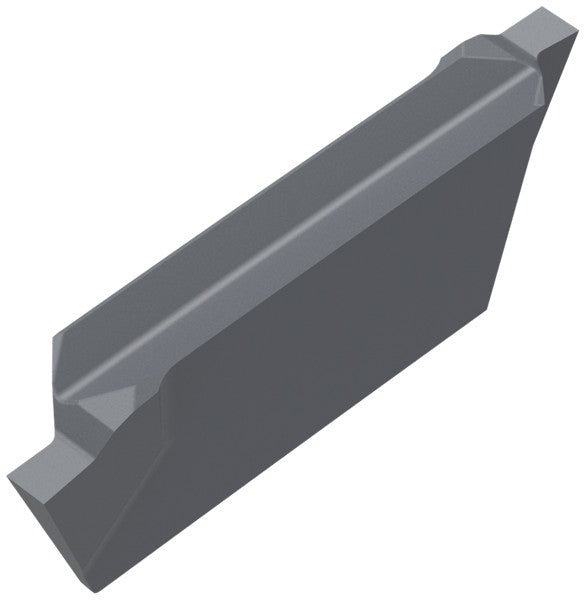

| Name | Ceratizit GX16-2S0.90R CTP1340 CoreLine Carbide Grooving Insert For circlip Grooves 70352699 | |
| EDP # | 0712858 | |
| Weight (1 pc.) | 0.1 oz | 2.8 g |
| Product-Carbon-Footprint | B | |

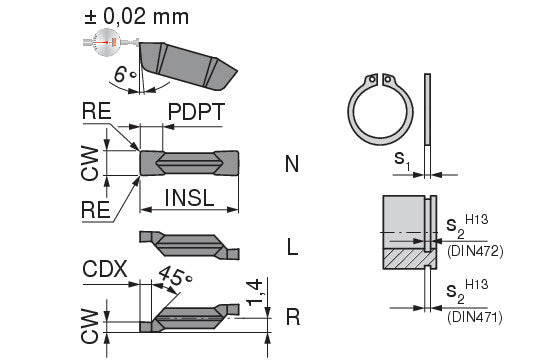

| Cutting width / CW +/-0,02 | 0.0354" | 0.900 mm |
| Insert hand / IH | R | |
| S1 - CIRCLIP | 0.0276" | 0.700 mm |
| S2 - CIRCLIP | 0.0315" | 0.800 mm |
| Cutting depth maximum / CDX | 0.0409" | 1.040 mm |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
