Description
Ceratizit Article Number: 70352608
Ceratizit Material Number: 11346968
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

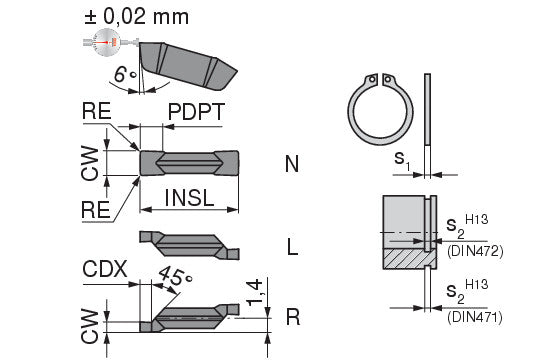

| Properties | ||
|---|---|---|

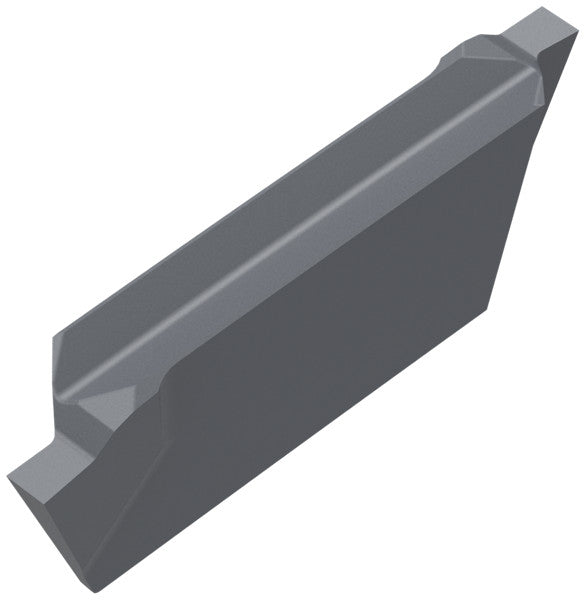

| Name | Ceratizit GX16-2S1.95R CTP1340 Circlip Groove Insert 09/16 Standard 70352608 | |
| EDP # | 0712867 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 0.1 oz | 2.9 g |
| Cutting width / CW +/-0,02 | 0.0768" | 1.950 mm |
| Insert hand / IH | R | |
| S1 - CIRCLIP | 0.0689" | 1.750 mm |
| S2 - CIRCLIP | 0.0728" | 1.850 mm |
| Cutting depth maximum / CDX | 0.0815" | 2.070 mm |
| Coating name / Grade (Ceratizit) / COATN | CTP1340 | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
