Description
Ceratizit Article Number: 70352628
Ceratizit Material Number: 11346986
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

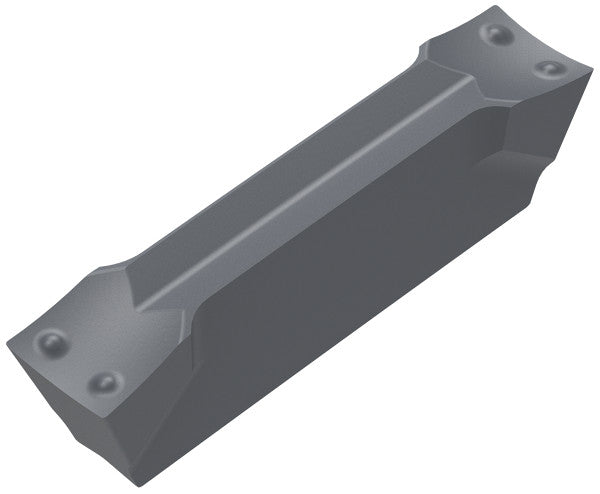

| Name | Ceratizit GX16-3S4.25N CTP1340 CoreLine Carbide Grooving Insert For circlip Grooves 70352628 | |
| EDP # | 0712872 | |
| Weight (1 pc.) | 0.1 oz | 4.2 g |
| Product-Carbon-Footprint | B | |

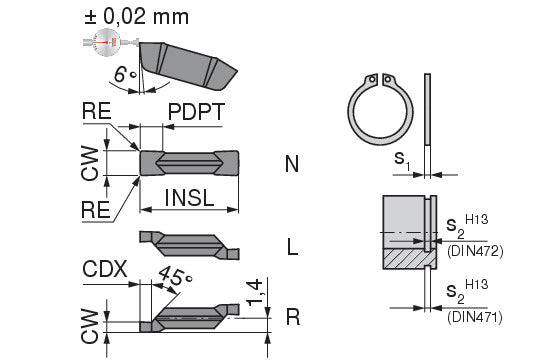

| Cutting width / CW +/-0,02 | 0.1673" | 4.250 mm |
| S1 - CIRCLIP | 0.1575" | 4.000 mm |
| S2 - CIRCLIP | 0.1634" | 4.150 mm |
| Corner radius / RE +/-0,05 | 0.0079" | 0.200 mm |
| Insert hand / IH | N | |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
