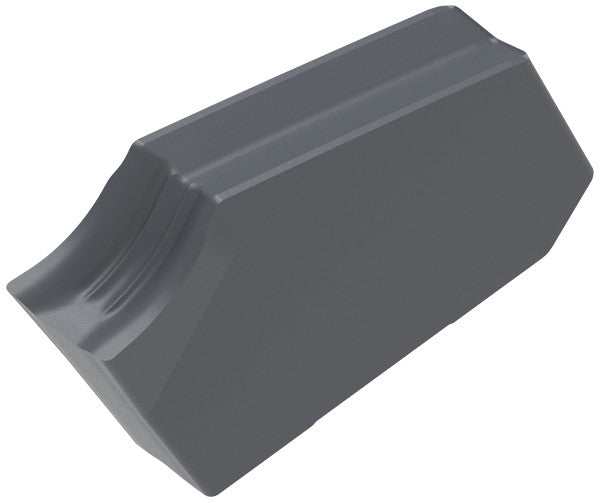

Ceratizit FX 2.2N0.15-F1 CTP1340 CoreLine Carbide Grooving Insert 70331648 (0712899)
Ceratizit FX 2.2N0.15-F1 CTP1340 CoreLine Carbide Grooving Insert 70331648 (0712899)
Couldn't load pickup availability
Ceratizit Article Number: 70331648
Ceratizit Material Number: 11348345
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit FX 2.2N0.15-F1 CTP1340 CoreLine Carbide Grooving Insert 70331648 | |
| EDP # | 0712899 | |
| Weight (1 pc.) | 0.1 oz | 2.7 g |

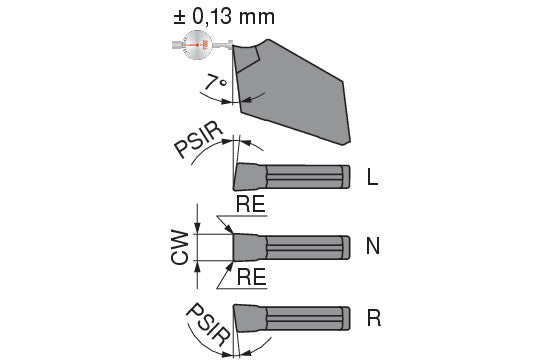

| Cutting width / CW -0.1 | 0.0866" | 2.200 mm |
| Insert hand / IH | N | |
| Insert length / INSL | 0.3543" | 9.000 mm |
| Corner radius / RE +/-0,05 | 0.0059" | 0.150 mm |
| Profile depth insert / PDPT | 0.0748" | 1.900 mm |
| Chip breaker (Ceratizit) / CBMD | -F1 | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
| Product-Carbon-Footprint | B | |
| Machining process - Main Application | External grooving | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
