Description
Ceratizit Article Number: 70894340
Ceratizit Material Number: 11348707
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

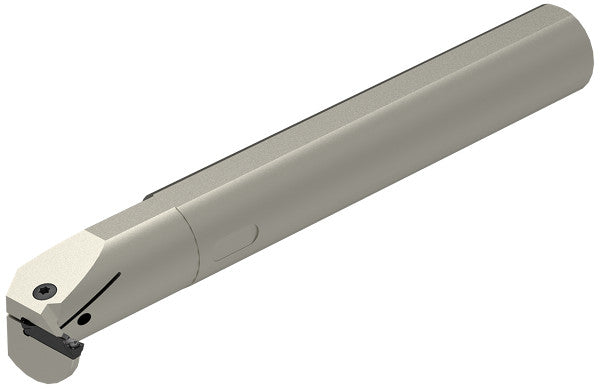

| Name | Ceratizit I40R90-2.0D-GX24-4 CoreLine Radial Mono Boring Bars 70894340 | |
| EDP # | 0712935 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) HiTemp Alloy (Orange) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Aluminum (Green) Cast Iron (Red) All Materials (White) | |
| Weight (1 pc.) | 98.0 oz | 2775 g |

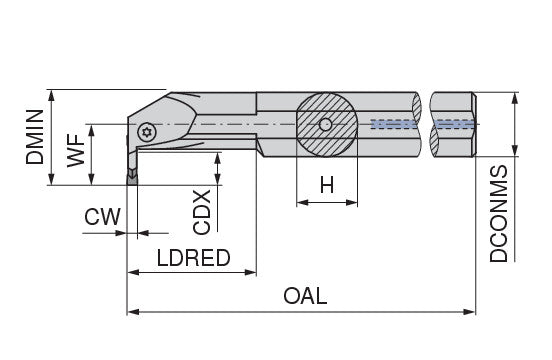

| Shank height / H | 1.5157" | 38.500 mm |
| Mounting spigot diameter / DCONMS | 1.5748" | 40.000 mm |
| Minimum bore diameter / DMIN | 2.2441" | 57.000 mm |
| Cutting depth maximum / CDX | 0.6890" | 17.500 mm |
| Functional width / WF | 1.3543" | 34.400 mm |
| Overall length / OAL | 11.8110" | 300.000 mm |
| Reduced body diameter length / LDRED | 3.1496" | 80.000 mm |
| Product-Carbon-Footprint | B | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
