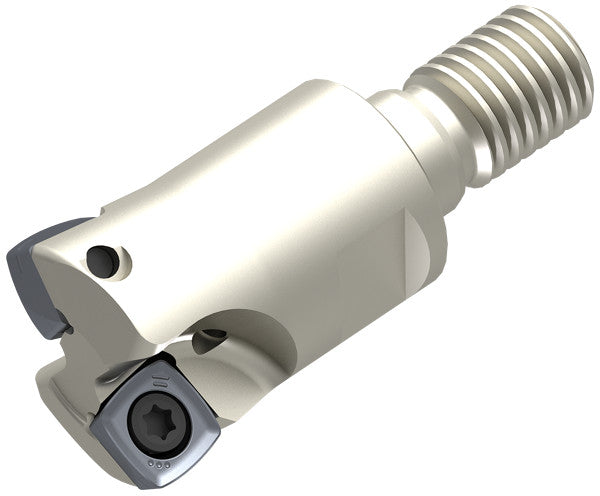

Ceratizit GHFC.32.R.02-12 CoreLine High-feed Screw-in Cutter 50682132 (0712972)
Ceratizit GHFC.32.R.02-12 CoreLine High-feed Screw-in Cutter 50682132 (0712972)
Couldn't load pickup availability
Ceratizit Article Number: 50682132
Ceratizit Material Number: 11350334
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit GHFC.32.R.02-12 CoreLine High-feed Screw-in Cutter 50682132 | |
| EDP # | 0712972 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) HiTemp Alloy (Orange) Stainless Steel (Yellow) Cast Iron (Red) Cast Iron (Red) Steel (Blue) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 6.0 oz | 177 g |
| Product-Carbon-Footprint | B | |
| Productsystem | HFC | |
| Machining process - Main Application | Helical plunging | |

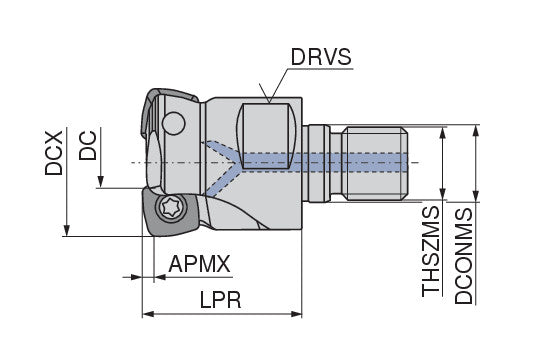

| Cutting diameter maximum / DCX | 1.2598" | 32.000 mm |
| Cutting diameter / DC | 0.5906" | 15.000 mm |
| Face mounted insert count / ZNF | 2 | |
| Depth of cut maximum / APMX | 0.0787" | 2.000 mm |
| Protruding length / LPR | 1.3780" | 35.000 mm |
| Neck Diameter / DN | 1.1417" | 29.000 mm |
| Connection thread nominal size / THSZMS | M16 | |
| Mounting spigot diameter / DCONMS | 0.6693" | 17.000 mm |
| Neck diameter (BD) / BD | 1.2413" | 31.530 mm |
| Drive size / DRVS | 0.9449" | 24.000 mm |
| Rotational speed maximum / RPMX | 21600 1/min. | |
| Insert | XOLX 1204.. | |
| Overall length / OAL | 2.2835" | 58.000 mm |
| Head length / LH | 0.4882" | 12.400 mm |
| torque moment | 5 Nm | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
