Description
Ceratizit Article Number: 70884104
Ceratizit Material Number: 11357944
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

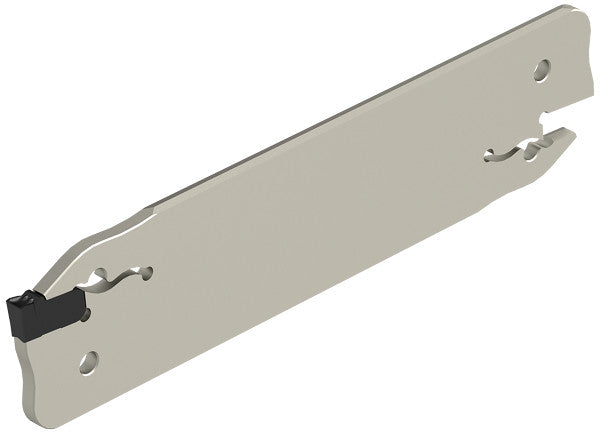

| Name | Ceratizit XLCFN 3204-SX4 CoreLine Standard Radial Blade 70884104 | |
| EDP # | 0713006 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Cast Iron (Red) HiTemp Alloy (Orange) Stainless Steel (Yellow) Aluminum (Green) All Materials (White) | |
| Weight (1 pc.) | 5.0 oz | 143 g |

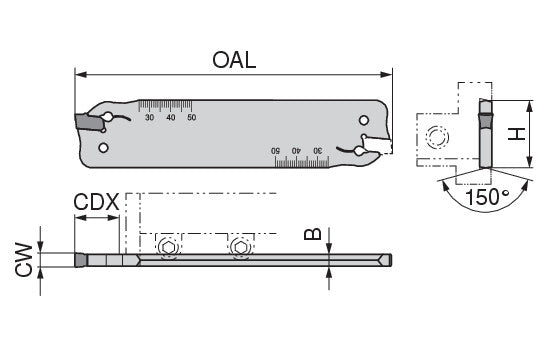

| Shank height / H | 1.2598" | 32.000 mm |
| Shank width / B | 0.1260" | 3.200 mm |
| Cutting width / CW | 0.1575" | 4.000 mm |
| Overall length / OAL | 5.9055" | 150.000 mm |
| Cutting depth maximum / CDX | 1.9685" | 50.000 mm |
| Product-Carbon-Footprint | B | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
