Description
Ceratizit Article Number: 50515952
Ceratizit Material Number: 11418062
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

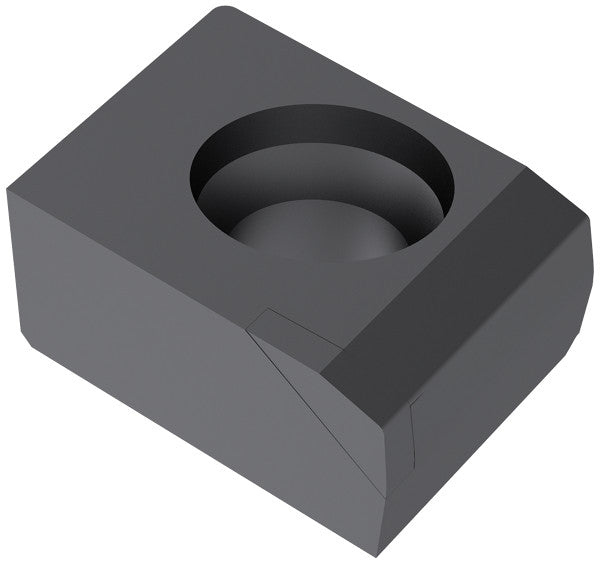

| Name | Ceratizit ZNHW 1205EOER-1002 CTL3215 CoreLine PcBN Milling indexable Insert 50515952 | |
| EDP # | 0713079 | |
| Weight (1 pc.) | 0.4 oz | 11.9 g |
| Product-Carbon-Footprint | C | |
| designation | 1205EOER-1002 | |

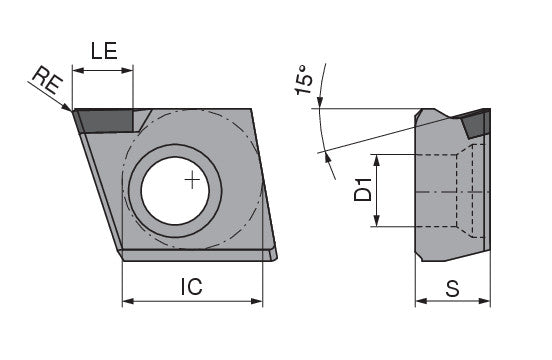

| Cutting edge effective length / LE | 0.0787" | 2.000 mm |
| Inscribed circle diameter / IC | 0.3937" | 10.000 mm |
| Fixing hole diameter / D1 | 0.1909" | 4.850 mm |
| Cutting edge length / L | 0.5000" | 12.700 mm |
| Insert thickness / S | 0.2126" | 5.400 mm |
| Clearance angle major / AN | 0 ° | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
