Description
Ceratizit Article Number: 7420620200
Ceratizit Material Number: 11432538
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

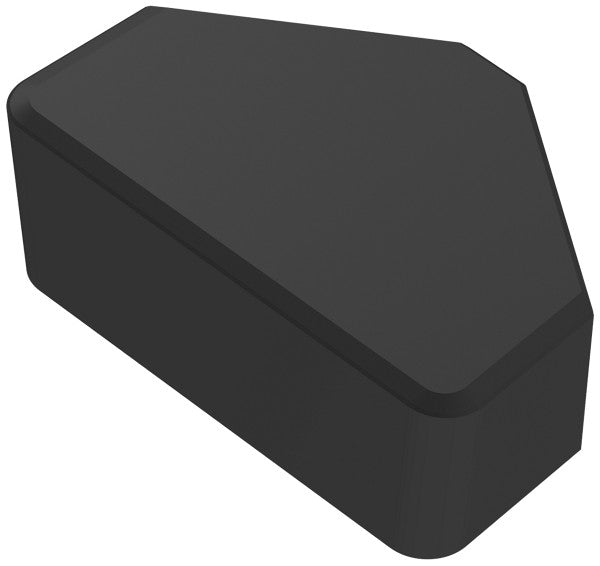

| Name | Ceratizit HX 40.32.65PN-150CE CTM3110 MaxiTurn CERAMIC Grooving indexable Insert 7420620200 | |
| EDP # | 0713089 | |
| Weight (1 pc.) | 1.0 oz | 35.2 g |
| Cutting width / CW | 1.5748" | 40.000 mm |
| Corner radius / RE | 0.1260" | 3.200 mm |
| Alpha | 110.0000" | 2794.000 mm |
| Relief angle / RA | 3 ° | |
| Insert hand / IH | N | |
| Coating name / Grade (Ceratizit) / COATN | CTM3110 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
