Description
Ceratizit Article Number: 7420320500
Ceratizit Material Number: 11452209
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

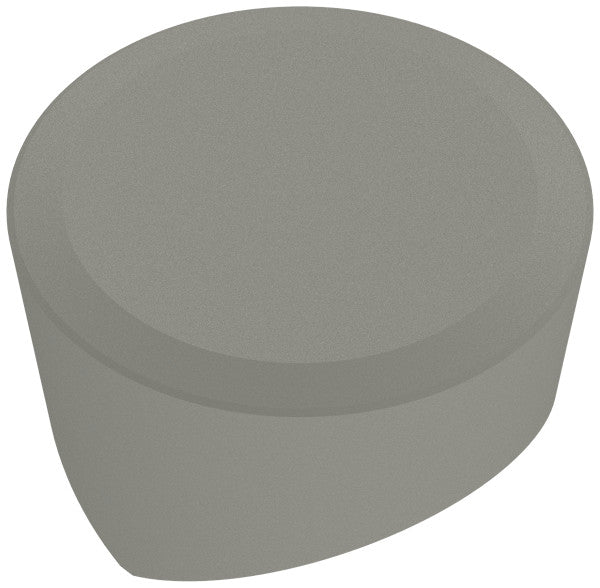

| Name | Ceratizit RCGX 120700TN-020D CTS3105 CoreLine CERAMIC Turning indexable Insert 7420320500 | |
| EDP # | 0713121 | |
| Weight (1 pc.) | 0.2 oz | 4.5 g |
| designation | 120700TN | |

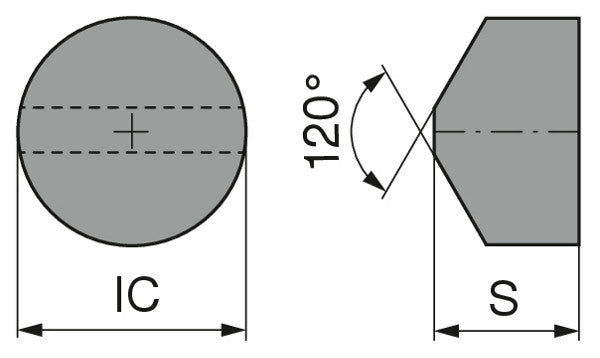

| Insert thickness / S | 0.3031" | 7.700 mm |
| Inscribed circle diameter / IC | 0.5000" | 12.700 mm |
| 45TN | ||
| support chamfer angle / GB | 20 ° | |
| Face land width / BN | 0.0079" | 0.200 mm |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
