Description
Ceratizit Article Number: 7420020300
Ceratizit Material Number: 11452312
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

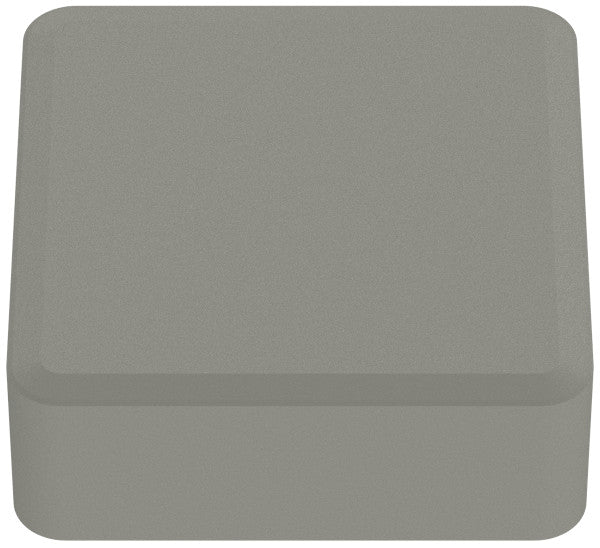

| Name | Ceratizit SNGN 250924PN-100CF CTS3105 CoreLine CERAMIC Turning indexable Insert 7420020300 | |
| EDP # | 0713139 | |
| Weight (1 pc.) | 1.0 oz | 32.9 g |
| designation | 250924PN | |
| Corner radius / RE | 0.0945" | 2.400 mm |
| Cutting edge length / L | 1.0000" | 25.400 mm |
| Insert thickness / S | 0.3748" | 9.520 mm |
| Inscribed circle diameter / IC | 1.0000" | 25.400 mm |
| support chamfer angle / GB | 15 ° | |
| Face land width / BN | 0.0394" | 1.000 mm |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
