Description
Ceratizit Article Number: 5873610004
Ceratizit Material Number: 11464315
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

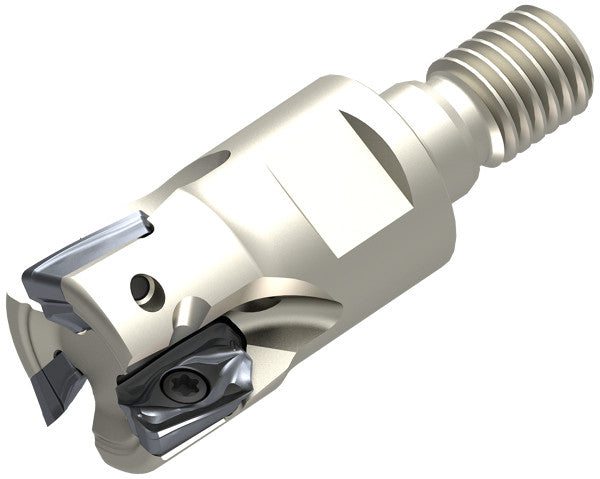

| Name | Ceratizit G211.100.R.04-11-150-F CoreLine Screw-in Cutter 211-11 5873610004 | |
| EDP # | 0713180 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Steel (Blue) Cast Iron (Red) HiTemp Alloy (Orange) HiTemp Alloy (Orange) Stainless Steel (Yellow) Aluminum (Green) Composites (Black) Hard/Tool Steel (Grey) All Materials (White) | |
| Weight (1 pc.) | 4.0 oz | 106 g |

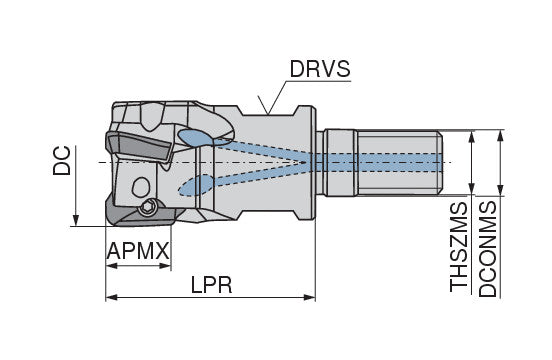

| Cutting diameter / DC | 1.0000" | 25.400 mm |
| Face mounted insert count / ZNF | 4.0000" | 101.600 mm |
| Depth of cut maximum / APMX | 0.3940" | 10.010 mm |
| Protruding length / LPR | 1.5000" | 38.100 mm |
| Connection thread nominal size / THSZMS | M12 | |
| Mounting spigot diameter / DCONMS | 0.4921" | 12.500 mm |
| Rotational speed maximum / RPMX | 33200 1/min. | |
| Insert | XD.T 11T3 | |
| Overall length / OAL | 2.3700" | 60.200 mm |
| torque moment | 1.6 Nm | |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
