Description
Ceratizit Article Number: 70896020
Ceratizit Material Number: 11464343
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

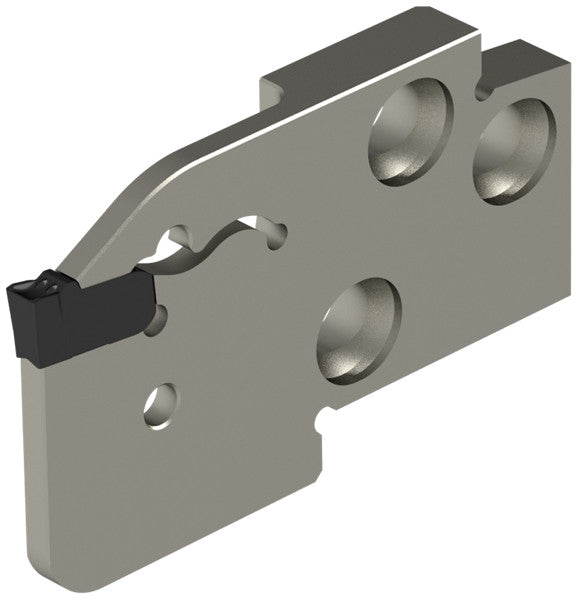

| Name | Ceratizit MSS-E20R20-SX2 CoreLine Radial Grooving Module ModularClamp 70896020 | |
| EDP # | 0713181 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Stainless Steel (Yellow) HiTemp Alloy (Orange) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Aluminum (Green) All Materials (White) | |
| Weight (1 pc.) | 1.0 oz | 31.0 g |
| Product-Carbon-Footprint | B | |

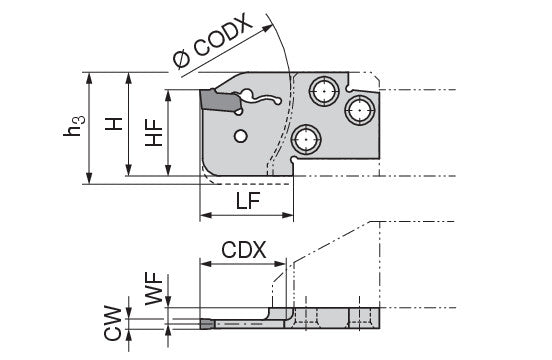

| Functional height / HF | 0.7874" | 20.000 mm |
| Cutting width / CW | 0.0787" | 2.000 mm |
| Functional width / WF | 0.1406" | 3.570 mm |
| Functional length / LF | 0.8661" | 22.000 mm |
| Shank height / H | 0.9449" | 24.000 mm |
| H3 | 1.0630" | 27.000 mm |
| Cutting depth maximum / CDX | 0.7874" | 20.000 mm |
| Version | Right | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
