Description
Ceratizit Article Number: 50733100
Ceratizit Material Number: 11469402
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

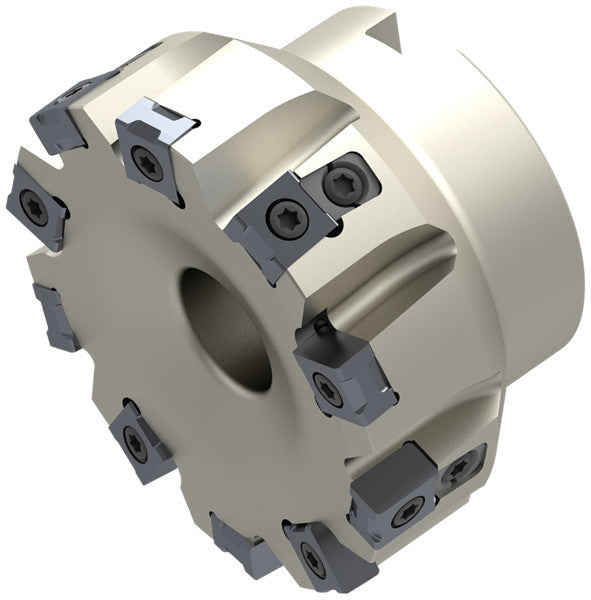

| Name | Ceratizit AHEC.100.R.12A06-11 MaxiMill Shell Mill 50733100 | |
| EDP # | 0713200 | |
| Workpiece Material(s) | Cast Iron (Red) Steel (Blue) Hard/Tool Steel (Grey) All Materials (White) | |
| Weight (1 pc.) | 71.0 oz | 2007 g |

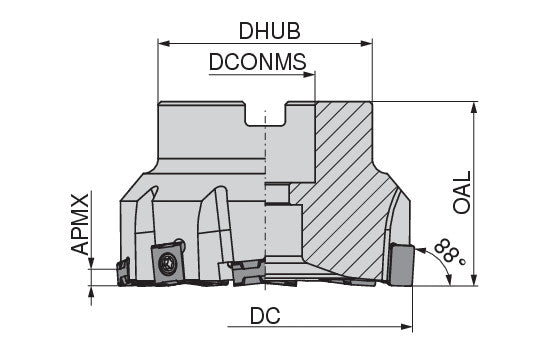

| Depth of cut maximum / APMX | 0.2362" | 6.000 mm |
| Face mounted insert count / ZNF | 12.0000" | 304.800 mm |
| Cutting diameter / DC | 3.9370" | 100.000 mm |
| Overall length / OAL | 1.9685" | 50.000 mm |
| Hub diameter / DHUB | 3.0709" | 78.000 mm |
| Mounting spigot diameter / DCONMS H6 | 1.2598" | 32.000 mm |
| Rotational speed maximum / RPMX | 6400 1/min. | |
| torque moment | 3.2 Nm | |
| Insert | LNHX 1106 | |
| Tool cutting edge angle / KAPR | 88 ° | |
| Product-Carbon-Footprint | B | |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
