Description
Ceratizit Article Number: 7145690201
Ceratizit Material Number: 11488102
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

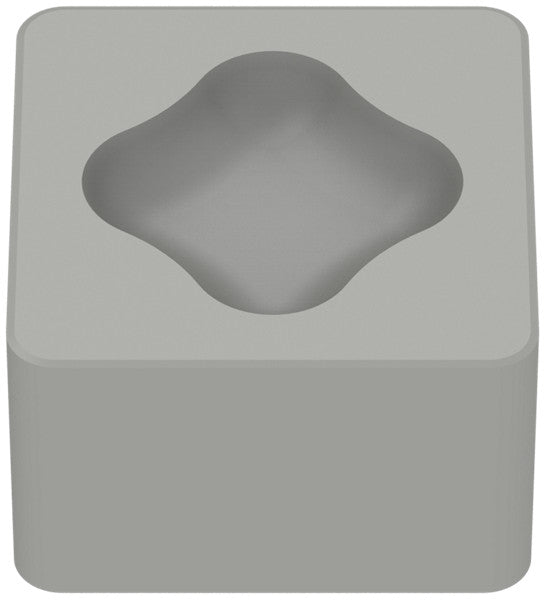

| Name | Ceratizit SNGX 150716TN-020D CTN3105 CoreLine CERAMIC Turning indexable Insert 7145690201 | |
| EDP # | 0713226 | |
| Weight (1 pc.) | 0.3 oz | 7.4 g |
| designation | 150716TN | |
| Corner radius / RE | 0.0630" | 1.600 mm |
| Cutting edge length / L | 0.6248" | 15.870 mm |
| Insert thickness / S | 0.3126" | 7.940 mm |
| Inscribed circle diameter / IC | 0.6248" | 15.870 mm |
| support chamfer angle / GB | 20 ° | |
| Face land width / BN | 0.0079" | 0.200 mm |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
