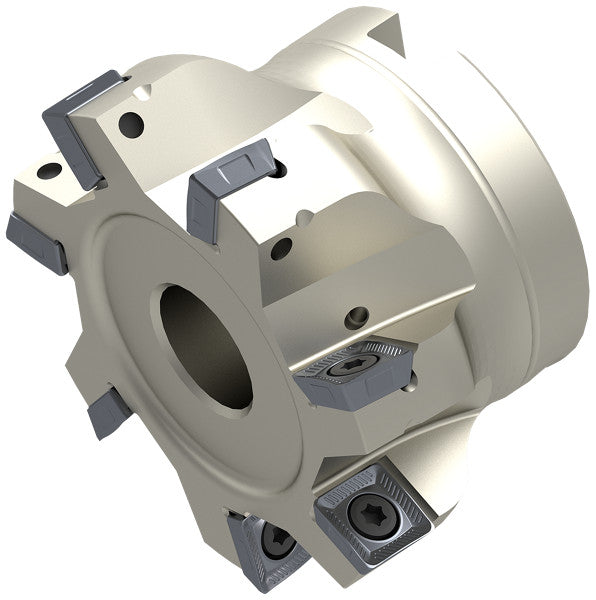

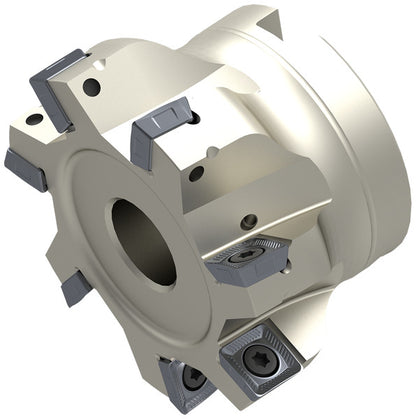

Ceratizit A490.40.R.04-12 CoreLine Face Mills 490-12 5070354000 (0713241)
Ceratizit A490.40.R.04-12 CoreLine Face Mills 490-12 5070354000 (0713241)
Couldn't load pickup availability
Ceratizit Article Number: 5070354000
Ceratizit Material Number: 11509299
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit A490.40.R.04-12 CoreLine Face Mills 490-12 5070354000 | |
| EDP # | 0713241 | |
| Workpiece Material(s) | Cast Iron (Red) Aluminum (Green) Composites (Black) Steel (Blue) HiTemp Alloy (Orange) Cast Iron (Red) Steel (Blue) Stainless Steel (Yellow) Stainless Steel (Yellow) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 8.0 oz | 236 g |

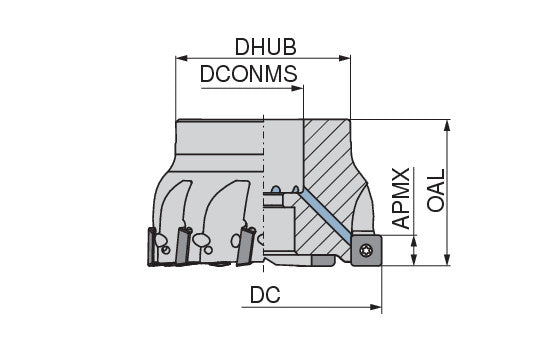

| Depth of cut maximum / APMX | 0.4331" | 11.000 mm |
| Face mounted insert count / ZNF | 4 | |
| Cutting diameter / DC | 1.5748" | 40.000 mm |
| Overall length / OAL | 1.5748" | 40.000 mm |
| Hub diameter / DHUB | 1.4961" | 38.000 mm |
| Mounting spigot diameter / DCONMS | 0.6299" | 16.000 mm |
| Insert | SD.. 1205.. | |
| torque moment | 5 Nm | |
| Tool cutting edge angle / KAPR | 90 ° | |
| Product-Carbon-Footprint | B | |
| Productsystem | 490-12 | |
| Machining process - Main Application | Slot milling | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
