Description
Note that this item has been discontinued and will not be re-stocked.
C490.32.R.03-12-B-40 MAXIMILL END MILLING CUTTER
Mat No: 11509301, Article No: 5070313200
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

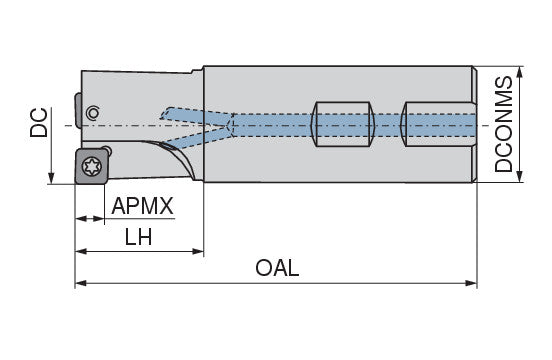

| Name | Ceratizit C490.32.R.03-12-B-40 MAXIMILL END MILLING CUTTER 11509301 (0713242) | |
| EDP # | 0713242 | |
| Weight | 18.9 oz | 534.5 g |
| Cutting diameter DC | 1.2598 inch | 32 mm |
| Face mounted insert count ZNF | 3 | |
| Depth of cut maximum APMX | 0.4331 inch | 11 mm |
| Overall length OAL | 3.9764 inch | 101 mm |
| Head length LH | 1.5748 inch | 40 mm |
| Mounting spigot diameter DCONMS | 1.2598 inch | 32 mm |
| Insert | SD.. 1205.. | |
| torque moment | 5 Nm | |
| Designation | C490.32.R.03-12-B-40 | |
