Description
Ceratizit Article Number: 5868542504
Ceratizit Material Number: 11518147
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

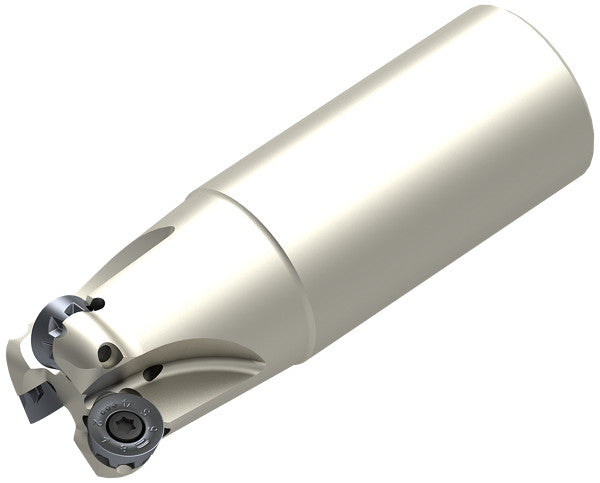

| Name | Ceratizit C251.125.R.04-10-A-325-RS-EF-1000 CoreLine End Mills 5868542504 | |
| EDP # | 0713311 | |
| Workpiece Material(s) | HiTemp Alloy (Orange) Cast Iron (Red) Aluminum (Green) Composites (Black) Steel (Blue) Stainless Steel (Yellow) Stainless Steel (Yellow) HiTemp Alloy (Orange) Steel (Blue) Cast Iron (Red) All Materials (White) | |
| Weight (1 pc.) | 51.0 oz | 1433 g |

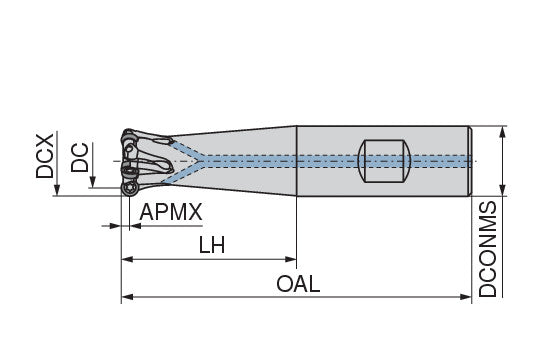

| Cutting diameter maximum / DCX | 1.2500" | 31.750 mm |
| Cutting diameter / DC | 0.8570" | 21.770 mm |
| Face mounted insert count / ZNF | 4.0000" | 101.600 mm |
| Depth of cut maximum / APMX | 0.1970" | 5.000 mm |
| Overall length / OAL | 10.0000" | 254.000 mm |
| Head length / LH | 3.2500" | 82.550 mm |
| Mounting spigot diameter / DCONMS | 1.2500" | 31.750 mm |
| Rotational speed maximum / RPMX | 18000 1/min. | |
| Insert | RP.X 10T3.. | |
| torque moment | 2 Nm | |
| Minimum Extension (DIN 6535 HA) | 7.5591" - 7.6378" | 192.000 - 194.000 mm |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
