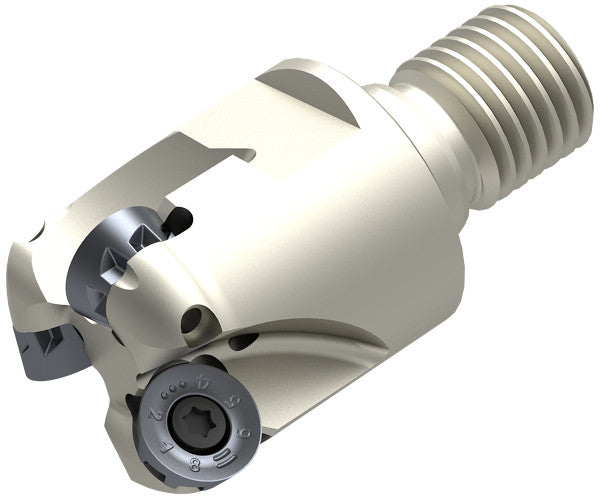

Ceratizit G251.150.R.05-10-175-RS-F CoreLine Screw-in Cutter 5868415105 (0713313)
Ceratizit G251.150.R.05-10-175-RS-F CoreLine Screw-in Cutter 5868415105 (0713313)
Couldn't load pickup availability
Ceratizit Article Number: 5868415105
Ceratizit Material Number: 11518154
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit G251.150.R.05-10-175-RS-F CoreLine Screw-in Cutter 5868415105 | |
| EDP # | 0713313 | |
| Workpiece Material(s) | Stainless Steel (Yellow) Steel (Blue) Cast Iron (Red) Stainless Steel (Yellow) HiTemp Alloy (Orange) Steel (Blue) HiTemp Alloy (Orange) Cast Iron (Red) All Materials (White) | |
| Weight (1 pc.) | 9.0 oz | 255 g |
| Productsystem | 251 RS | |
| Machining process - Main Application | Face milling | |

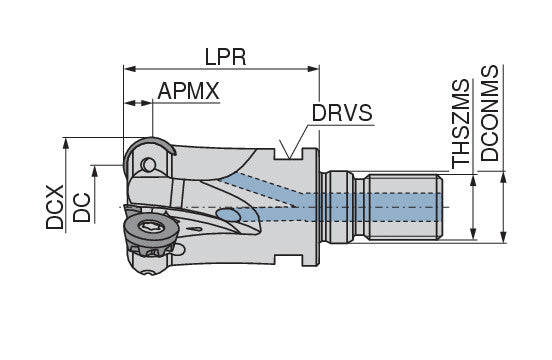

| Cutting diameter maximum / DCX | 1.5000" | 38.100 mm |
| Cutting diameter / DC | 1.1060" | 28.090 mm |
| Face mounted insert count / ZNF | 5 | |
| Depth of cut maximum / APMX | 0.1970" | 5.000 mm |
| Protruding length / LPR | 1.7500" | 44.450 mm |
| Connection thread nominal size / THSZMS | M16 | |
| Mounting spigot diameter / DCONMS | 0.6693" | 17.000 mm |
| Rotational speed maximum / RPMX | 15150 1/min. | |
| Insert | RP.X 10T3.. | |
| Overall length / OAL | 2.6550" | 67.440 mm |
| torque moment | 2 Nm | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
