Description
Ceratizit Article Number: 5875815003
Ceratizit Material Number: 11518403
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

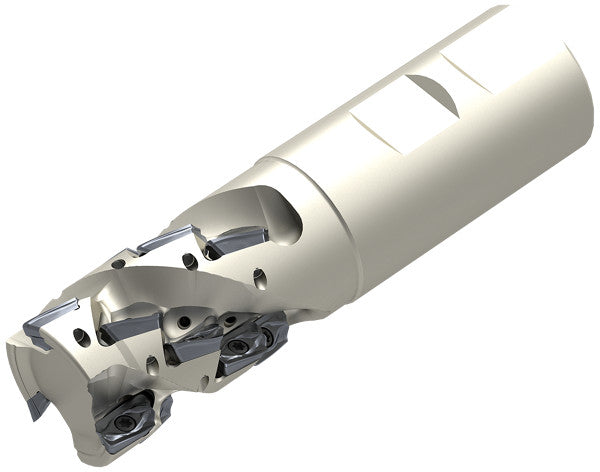

| Name | Ceratizit C211.150.R.03K4-11-A-225-EF CoreLine Extended Flute Cutter 211-11K 5875815003 | |
| EDP # | 0713319 | |
| Workpiece Material(s) | Steel (Blue) Cast Iron (Red) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) Composites (Black) HiTemp Alloy (Orange) Stainless Steel (Yellow) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 34.0 oz | 962 g |

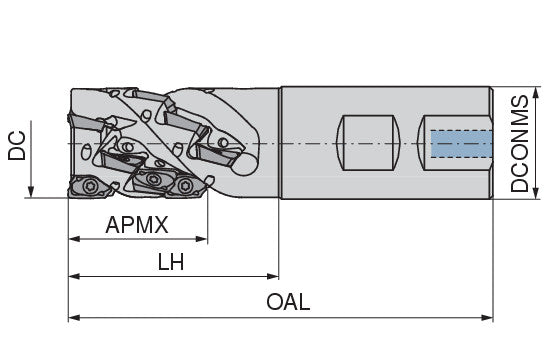

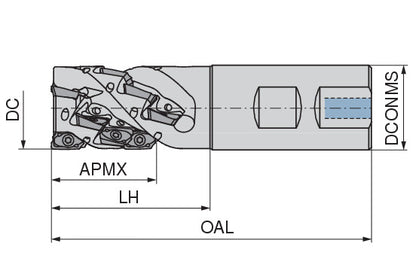

| Cutting diameter / DC | 1.5000" | 38.100 mm |
| Face mounted insert count / ZNF | 3.0000" | 76.200 mm |
| Depth of cut maximum / APMX | 1.4200" | 36.070 mm |
| Overall length / OAL | 5.1000" | 129.540 mm |
| Head length / LH | 2.2500" | 57.150 mm |
| Mounting spigot diameter / DCONMS | 1.5000" | 38.100 mm |
| Peripheral effective cutting edge count / ZEFP | 12.0000" | 304.800 mm |
| Peripheral mounted insert count / ZNP | 4.0000" | 101.600 mm |
| Rotational speed maximum / RPMX | 18500 1/min. | |
| torque moment | 1.6 Nm | |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
