Description
Ceratizit Article Number: 5875810002
Ceratizit Material Number: 11518410
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

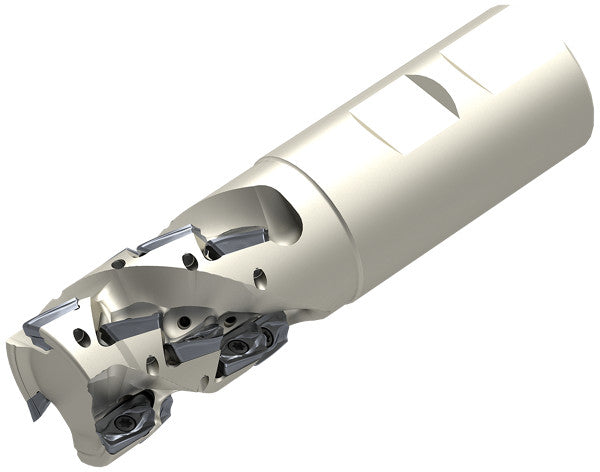

| Name | Ceratizit C211.100.R.02K3-11-B-150-EF CoreLine Extended Flute Cutter 211-11K 5875810002 | |
| EDP # | 0713321 | |
| Workpiece Material(s) | Cast Iron (Red) Aluminum (Green) Composites (Black) Steel (Blue) Cast Iron (Red) Stainless Steel (Yellow) Steel (Blue) HiTemp Alloy (Orange) Stainless Steel (Yellow) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 10.0 oz | 297 g |

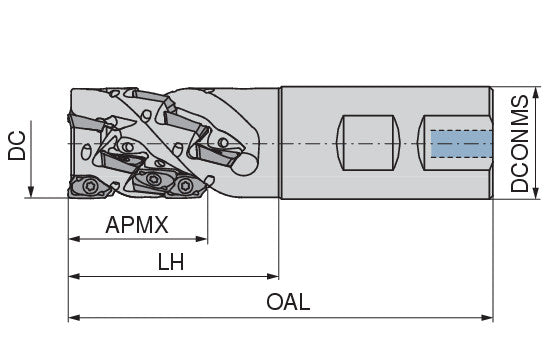

| Cutting diameter / DC | 1.0000" | 25.400 mm |
| Face mounted insert count / ZNF | 2.0000" | 50.800 mm |
| Depth of cut maximum / APMX | 1.0600" | 26.920 mm |
| Overall length / OAL | 3.7500" | 95.250 mm |
| Head length / LH | 1.5000" | 38.100 mm |
| Mounting spigot diameter / DCONMS | 1.0000" | 25.400 mm |
| Peripheral effective cutting edge count / ZEFP | 6.0000" | 152.400 mm |
| Peripheral mounted insert count / ZNP | 3.0000" | 76.200 mm |
| Rotational speed maximum / RPMX | 22200 1/min. | |
| torque moment | 1.6 Nm | |
| Minimum Extension (DIN 6535 HA) | 1.4272" - 1.5059" | 36.250 - 38.250 mm |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
