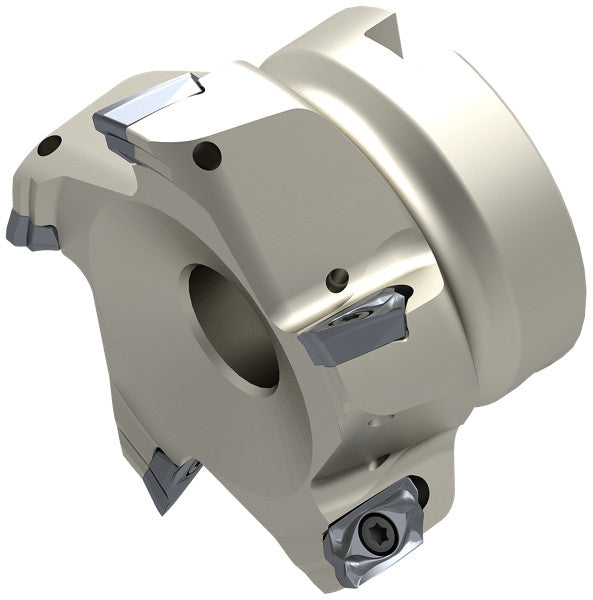

Ceratizit A211.250.R.06-15-A100-200-EF CoreLine Face Mills 211-15 5874825006 (0713325)
Ceratizit A211.250.R.06-15-A100-200-EF CoreLine Face Mills 211-15 5874825006 (0713325)
Couldn't load pickup availability
Ceratizit Article Number: 5874825006
Ceratizit Material Number: 11518428
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit A211.250.R.06-15-A100-200-EF CoreLine Face Mills 211-15 5874825006 | |
| EDP # | 0713325 | |
| Workpiece Material(s) | Steel (Blue) Cast Iron (Red) Stainless Steel (Yellow) Stainless Steel (Yellow) Steel (Blue) Cast Iron (Red) HiTemp Alloy (Orange) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 24.0 oz | 690 g |
| Productsystem | 211-15 | |
| Machining process - Main Application | Helical plunging | |

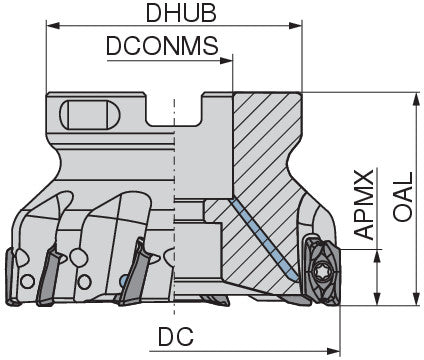

| Depth of cut maximum / APMX | 0.5510" | 14.000 mm |
| Face mounted insert count / ZNF | 6 | |
| Cutting diameter / DC | 2.5000" | 63.500 mm |
| Overall length / OAL | 2.2500" | 57.150 mm |
| Hub diameter / DHUB | 2.2500" | 57.150 mm |
| Mounting spigot diameter / DCONMS H6 | 1.0000" | 25.400 mm |
| Rotational speed maximum / RPMX | 18640 1/min. | |
| Insert | XD.T 1505 | |
| torque moment | 3.2 Nm | |
| Tool cutting edge angle / KAPR | 90 ° | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
