Description
Note that this item has been discontinued and will not be re-stocked.
Ceratizit Article Number: 76114546
Ceratizit Material Number: 11519757
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

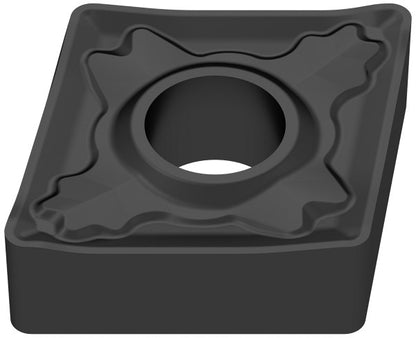

| Name | Ceratizit CNMM 160616EN-R28 CTCP125 76114546 | |
| EDP # | 0713337 | |
| Workpiece Material(s) | Steel (Blue) Cast Iron (Red) All Materials (White) | |
| Weight (1 pc.) | 1.0 oz | 19.0 g |
| designation | 160616EN | |
| Corner radius / RE | 0.0630' | 1.600 mm |
| Cutting edge length / L | 0.6339' | 16.100 mm |
| Insert thickness / S | 0.2500' | 6.350 mm |
| Fixing hole diameter / D1 | 0.2500' | 6.350 mm |
| Inscribed circle diameter / IC | 0.6248' | 15.870 mm |
| Chip breaker (Ceratizit) / CBMD | -R28 | |
| Coating name / Grade (Ceratizit) / COATN | CTCP125 | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
