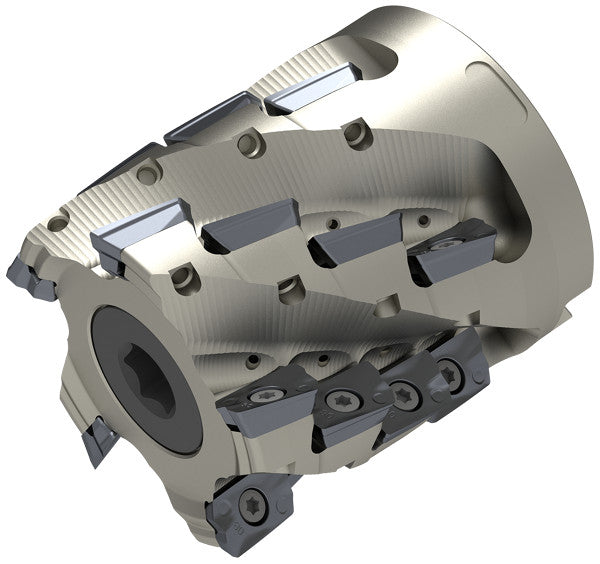

Ceratizit A211.63.R.04K4-20 CoreLine Shell End Face Mill 211-20K 5078006304 (0713342)
Ceratizit A211.63.R.04K4-20 CoreLine Shell End Face Mill 211-20K 5078006304 (0713342)
Couldn't load pickup availability
Ceratizit Article Number: 5078006304
Ceratizit Material Number: 11526179
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit A211.63.R.04K4-20 CoreLine Shell End Face Mill 211-20K 5078006304 | |
| EDP # | 0713342 | |
| Workpiece Material(s) | HiTemp Alloy (Orange) Steel (Blue) Stainless Steel (Yellow) HiTemp Alloy (Orange) Stainless Steel (Yellow) Cast Iron (Red) Cast Iron (Red) All Materials (White) | |
| Weight (1 pc.) | 38.0 oz | 1089 g |
| Product-Carbon-Footprint | B | |
| Productsystem | 211-20K | |
| Machining process - Main Application | Helical plunging | |

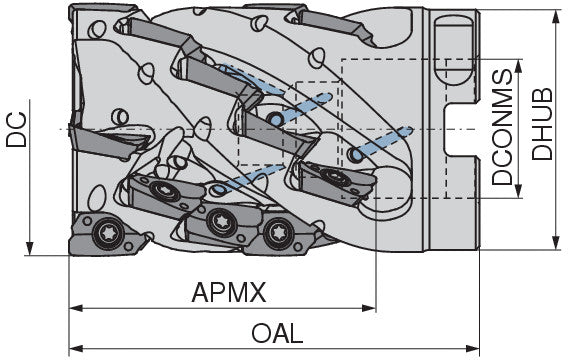

| Depth of cut maximum / APMX | 2.6772" | 68.000 mm |
| Face mounted insert count / ZNF | 4 | |
| Cutting diameter / DC | 2.4803" | 63.000 mm |
| Peripheral effective cutting edge count / ZEFP | 16 | |
| Peripheral mounted insert count / ZNP | 4.0000" | 101.600 mm |
| Overall length / OAL | 3.6220" | 92.000 mm |
| Hub diameter / DHUB | 2.2835" | 58.000 mm |
| Mounting spigot diameter / DCONMS H6 | 1.0630" | 27.000 mm |
| torque moment | 5 Nm | |
| Insert | XD.. 2007.. | |
| Tool cutting edge angle / KAPR | 90 ° | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
