Description
Ceratizit Article Number: 50743025
Ceratizit Material Number: 11529176
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

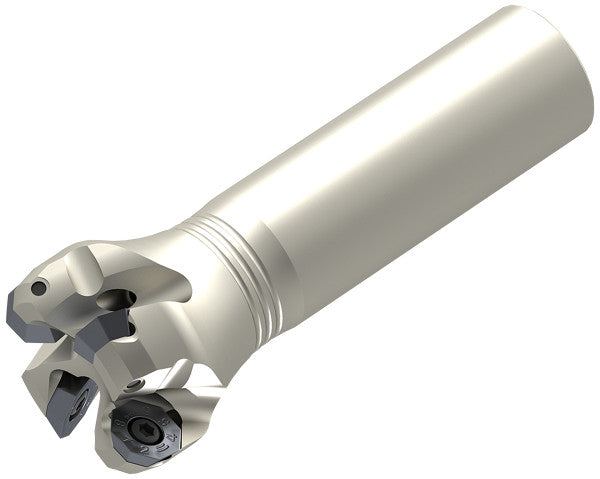

| Name | Ceratizit C274.25.R.04-09-A20-32 MaxiMill 274-04/-09 End Milling Cutter 50743025 | |
| EDP # | 0713355 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Steel (Blue) Cast Iron (Red) Stainless Steel (Yellow) Cast Iron (Red) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 8.0 oz | 220 g |

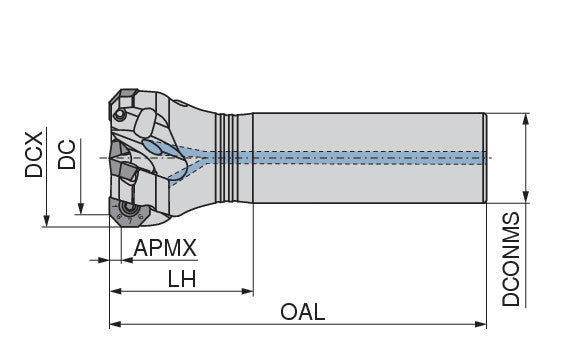

| Cutting diameter maximum / DCX | 1.2126" | 30.800 mm |
| Cutting diameter / DC | 0.9843" | 25.000 mm |
| Face mounted insert count / ZNF | 4 | |
| Depth of cut maximum / APMX | 0.1496" | 3.800 mm |
| Overall length / OAL | 3.3071" | 84.000 mm |
| Head length / LH | 1.2598" | 32.000 mm |
| Mounting spigot diameter / DCONMS | 0.7874" | 20.000 mm |
| torque moment | 1.2 Nm | |
| Insert | OF.. 0403 / SF.. 0903 | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
