Description
Ceratizit Article Number: 74577516
Ceratizit Material Number: 11570681
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

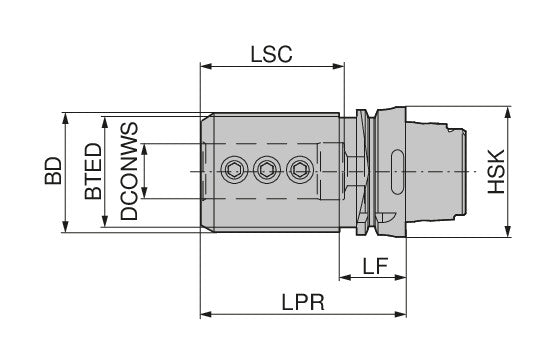

| Properties | ||
|---|---|---|

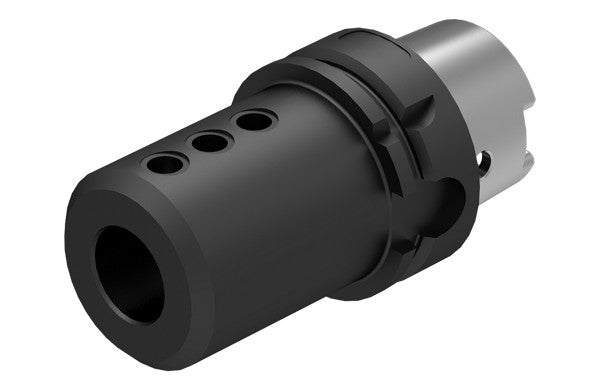

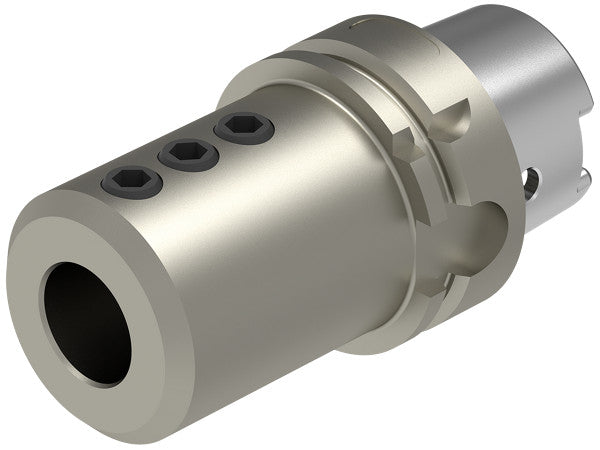

| Name | Ceratizit ISO12164-3.HSK-T63.BH.16.80 Boring Bar Holder 74577516 | |
| EDP # | 0713570 | |
| Weight (1 pc.) | 41.0 oz | 1155 g |
| Machine interface size | HSK-T 63 | |
| Clamping diameter (DCONWS) / DCONWS | 0.6299" | 16.000 mm |
| Protruding length / LPR | 3.1496" | 80.000 mm |
| Neck diameter (BD) / BD | 1.5748" | 40.000 mm |
| Overall length / OAL | 4.4094" | 112.000 mm |
| Clamping length machine side / LSC | 2.0079" | 51.000 mm |
Background Information:
The HSK system was invented in Germany in the 1990's and is now very commonly found in European machine tools and spindles. HSK stands for "Hohl Shaft Kegel" - "Hollow Shank Taper", and as the name implies this type of interface has a cavity running through it. Unlike classical 'pull-stud' designs (CAT, BT, SK etc), HSK uses an internal drawbar mechanism which results in clamping force increasing with rotational speed. Additionally, the form features dual contact; on an axial face and the cone (1:10), which puts HSK in the upper echelons of tool holder performance.
The HSK-T form was developed in 2008 for use in multi-tasking and turning centers. It is essentially the same as HSK-A, except in that the drive slots are manufactured to a much tighter tolerance standard (ISO121 165-3:2008), which provides better rotational accuracy crucial for positiong turning tools consistently. In rotating applications, HSK-T and HSK-A are fully interchangeable.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
