Description
Ceratizit Article Number: 70541816
Ceratizit Material Number: 11576876
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit DDJNL 1616 H11 CoreLine - 93° - Toolholder With Top Clamping 70541816 | |
| EDP # | 0713611 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Steel (Blue) Stainless Steel (Yellow) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 7.0 oz | 208 g |

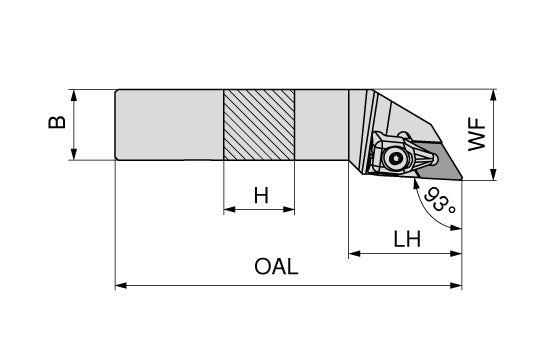

| Shank height / H | 0.6299" | 16.000 mm |
| Shank width / B | 0.6299" | 16.000 mm |
| Overall length / OAL | 3.9370" | 100.000 mm |
| Head length / LH | 1.2992" | 33.000 mm |
| Functional width / WF | 0.7874" | 20.000 mm |
| Insert | DN.. 1104 | |
| Overall height / OAH | 0.8165" | 20.740 mm |
| torque moment | 2 Nm | |
| Version | Left | |
| Product-Carbon-Footprint | B | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
