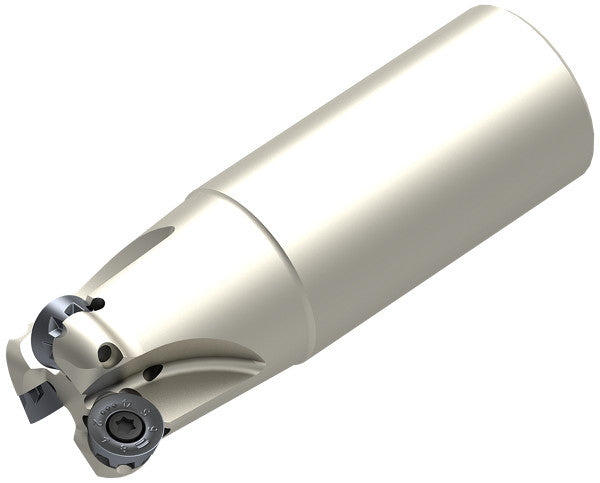

Ceratizit C251.12.R.03-05-A-32-165-RS CoreLine End Mills 50685112 (0713641)
Ceratizit C251.12.R.03-05-A-32-165-RS CoreLine End Mills 50685112 (0713641)
Couldn't load pickup availability
Ceratizit Article Number: 50685112
Ceratizit Material Number: 11592034
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit C251.12.R.03-05-A-32-165-RS CoreLine End Mills 50685112 | |
| EDP # | 0713641 | |
| Weight (1 pc.) | 5.0 oz | 129 g |
| Product-Carbon-Footprint | B | |
| Productsystem | 251 RS | |
| Machining process - Main Application | Axial plunging | |

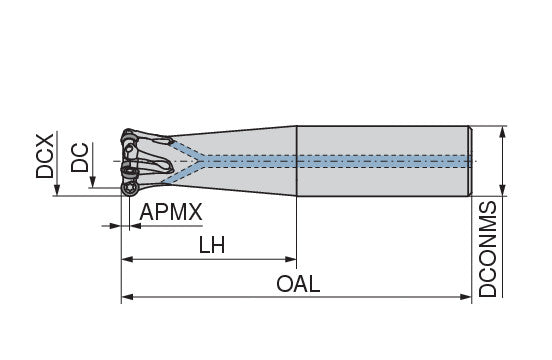

| Cutting diameter maximum / DCX | 0.4724" | 12.000 mm |
| Cutting diameter / DC | 0.2756" | 7.000 mm |
| Face mounted insert count / ZNF | 3 | |
| Depth of cut maximum / APMX | 0.0984" | 2.500 mm |
| Overall length / OAL | 6.4961" | 165.000 mm |
| Head length / LH | 1.2598" | 32.000 mm |
| Mounting spigot diameter / DCONMS | 0.4724" | 12.000 mm |
| Rotational speed maximum / RPMX | 16000 1/min. | |
| Insert | RDHX 0501.. | |
| torque moment | 0.7 Nm | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
