Description
Ceratizit Article Number: 5078540006
Ceratizit Material Number: 11600239
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

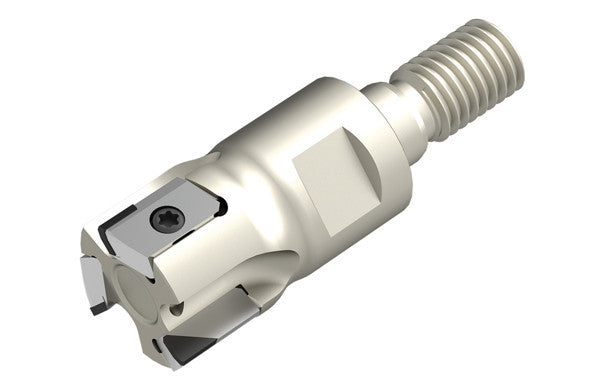

| Name | Ceratizit GHPC.40.R.06-04 CoreLine Screw-in Cutter 5078540006 | |
| EDP # | 0713658 | |
| Workpiece Material(s) | Cast Iron (Red) Hard/Tool Steel (Grey) Aluminum (Green) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 9.0 oz | 256 g |
| Product-Carbon-Footprint | A | |

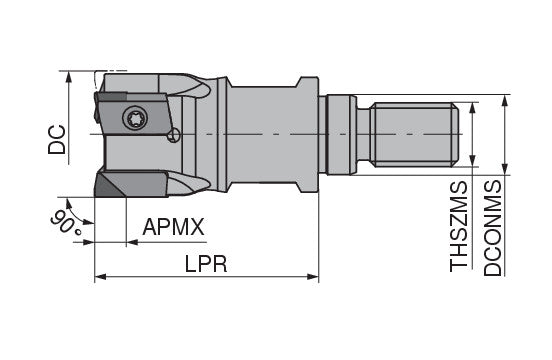

| Cutting diameter / DC | 1.5748" | 40.000 mm |
| Face mounted insert count / ZNF | 6.0000" | 152.400 mm |
| Depth of cut maximum / APMX | 0.1575" | 4.000 mm |
| Protruding length / LPR | 1.3780" | 35.000 mm |
| Connection thread nominal size / THSZMS | M16 | |
| Mounting spigot diameter / DCONMS | 0.6693" | 17.000 mm |
| Drive size / DRVS | 1.0630" | 27.000 mm |
| Rotational speed maximum / RPMX | 34000 1/min. | |
| Insert | ZNHW 04T3.. | |
| torque moment | 1.6 Nm | |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
