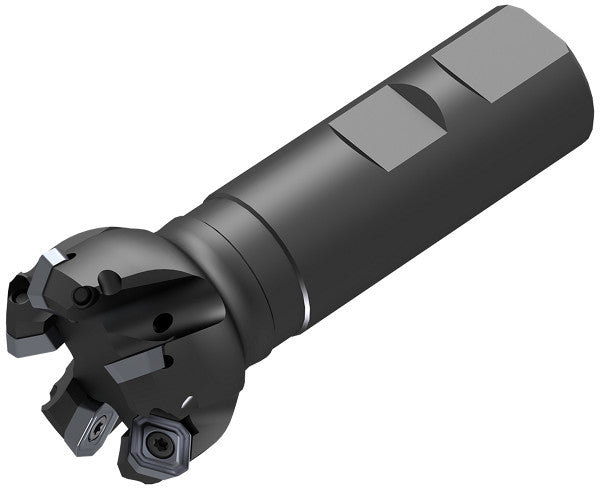

Ceratizit C270.125.R.05-09-B075-175-EF CoreLine End Mills 270-09 5866612505 (0713677)
Ceratizit C270.125.R.05-09-B075-175-EF CoreLine End Mills 270-09 5866612505 (0713677)
Couldn't load pickup availability
Ceratizit Article Number: 5866612505
Ceratizit Material Number: 11616622
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit C270.125.R.05-09-B075-175-EF CoreLine End Mills 270-09 5866612505 | |
| EDP # | 0713677 | |
| Workpiece Material(s) | Cast Iron (Red) Steel (Blue) Stainless Steel (Yellow) Steel (Blue) Cast Iron (Red) Aluminum (Green) Composites (Black) HiTemp Alloy (Orange) HiTemp Alloy (Orange) Stainless Steel (Yellow) All Materials (White) | |
| Weight (1 pc.) | 0.02 oz | 0.5 g |
| Productsystem | 270-09 | |
| Machining process - Main Application | Helical plunging | |

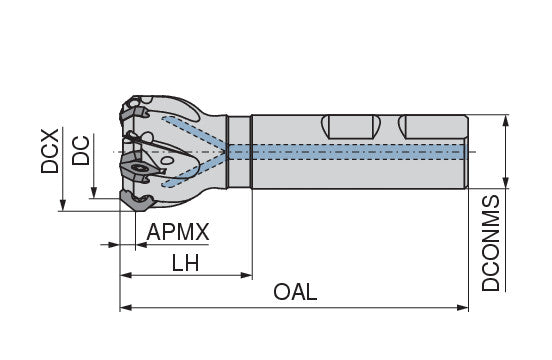

| Cutting diameter maximum / DCX | 1.5800" | 40.130 mm |
| Cutting diameter / DC | 1.2500" | 31.750 mm |
| Face mounted insert count / ZNF | 5 | |
| Depth of cut maximum / APMX | 0.1570" | 3.990 mm |
| Overall length / OAL | 3.7500" | 95.250 mm |
| Head length / LH | 1.7500" | 44.450 mm |
| Mounting spigot diameter / DCONMS | 0.7500" | 19.050 mm |
| Rotational speed maximum / RPMX | 25600 1/min. | |
| Insert | SD.. 0903.. | |
| torque moment | 1.8 Nm | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
