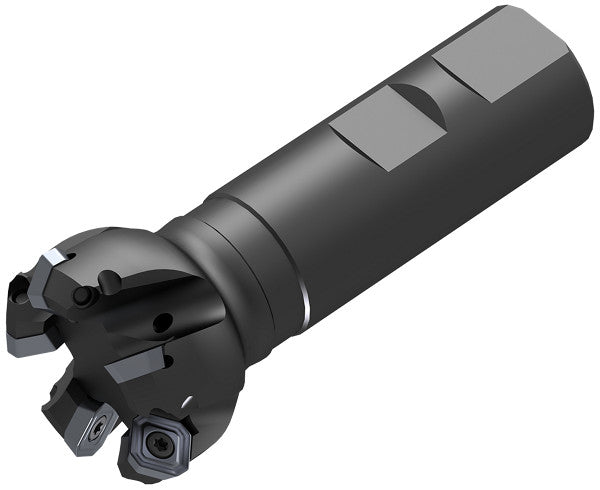

Ceratizit C270.150.R.05-09-B100-200-EF CoreLine End Mills 270-09 5866615105 (0713680)
Ceratizit C270.150.R.05-09-B100-200-EF CoreLine End Mills 270-09 5866615105 (0713680)
Couldn't load pickup availability
Ceratizit Article Number: 5866615105
Ceratizit Material Number: 11616626
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit C270.150.R.05-09-B100-200-EF CoreLine End Mills 270-09 5866615105 | |
| EDP # | 0713680 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) HiTemp Alloy (Orange) Cast Iron (Red) HiTemp Alloy (Orange) Steel (Blue) Cast Iron (Red) Stainless Steel (Yellow) Aluminum (Green) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 0.02 oz | 0.5 g |
| Productsystem | 270-09 | |
| Machining process - Main Application | Helical plunging | |

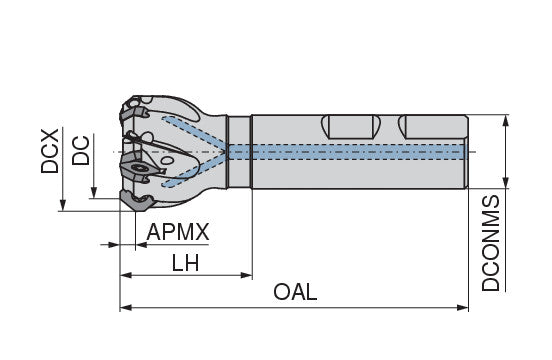

| Cutting diameter maximum / DCX | 1.8300" | 46.480 mm |
| Cutting diameter / DC | 1.5000" | 38.100 mm |
| Face mounted insert count / ZNF | 5 | |
| Depth of cut maximum / APMX | 0.1570" | 3.990 mm |
| Overall length / OAL | 4.0000" | 101.600 mm |
| Head length / LH | 2.0000" | 50.800 mm |
| Mounting spigot diameter / DCONMS | 1.0000" | 25.400 mm |
| Rotational speed maximum / RPMX | 23300 1/min. | |
| Insert | SD.. 0903.. | |
| torque moment | 1.8 Nm | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
