Description
Note that this item has been discontinued and will not be re-stocked.
ISO: CNMX 190740SN CTCP115 ANSI: CNMX 65XSN-2D-CTCP115 CARBIDE TURNING INSERT
Mat No: 11696006, Article No: 7410806100
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!

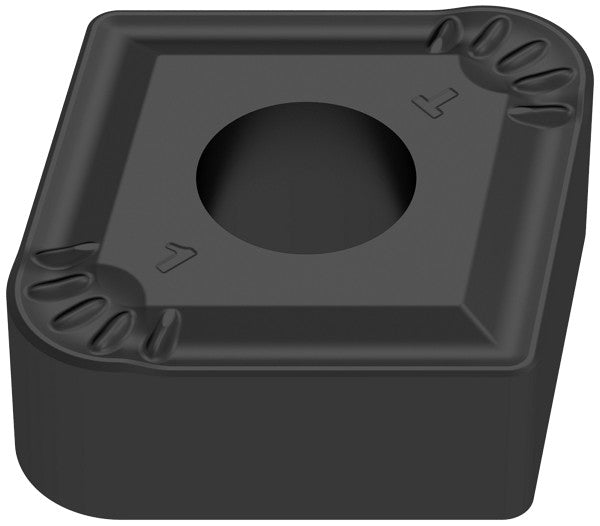

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit ISO: CNMX 190740SN CTCP115 ANSI: CNMX 65XSN-2D-CTCP115 CARBIDE TURNING INSERT 11696006 (0713868) | |
| EDP # | 0713868 | |
| Weight | 1.2 oz | 34.4 g |
| designation | 190740SN | |
| Corner radius RE | 0.1575 inch | 4 mm |
| Cutting edge length L | 0.7598 inch | 19.3 mm |
| Insert thickness S | 0.3126 inch | 7.94 mm |
| Fixing hole diameter D1 | 0.3126 inch | 7.94 mm |
| Inscribed circle diameter IC | 0.75 inch | 19.05 mm |
| Designation | CNMX 190740SN CTCP115 | |
| Coating name / Grade (Ceratizit) COATN | CTCP115 | |
Application & Properties:
